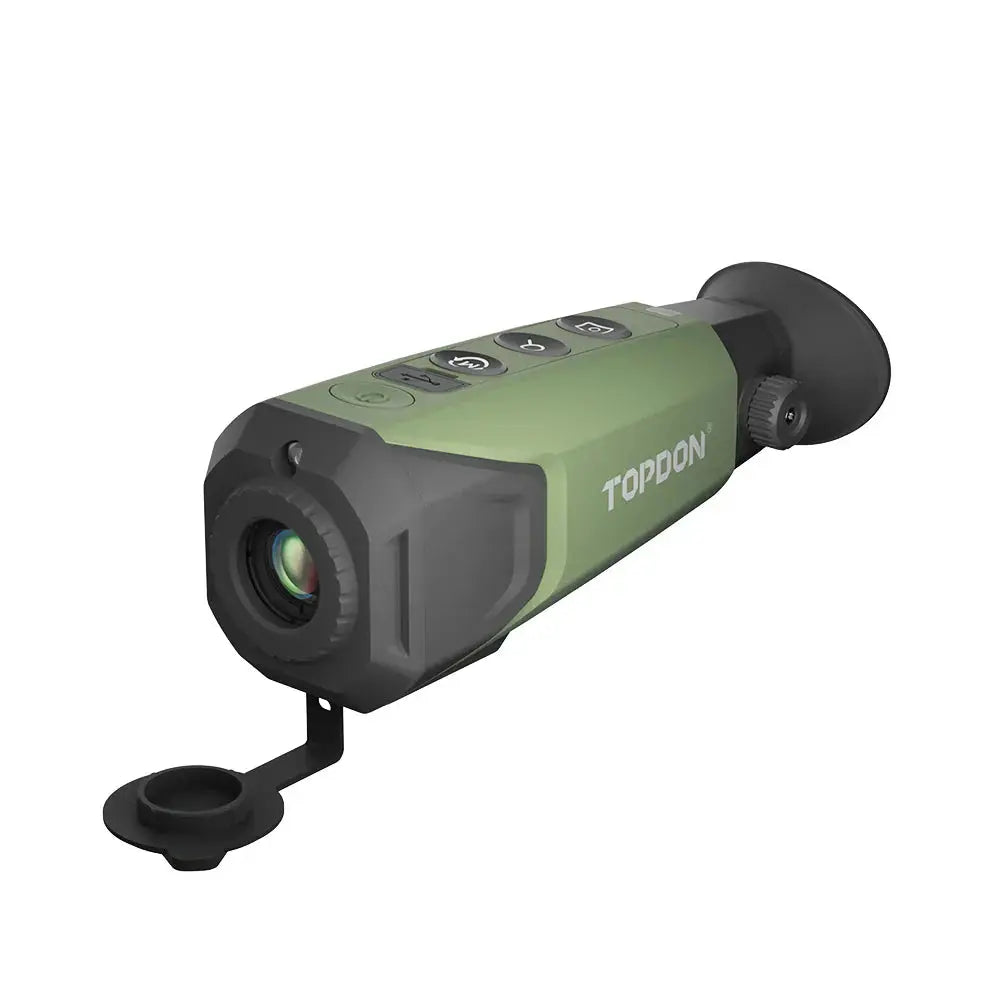

TOPDON TS004 Thermal Imaging Monocular
Professional Thermal Vision for Hunting, Wildlife Observation, Search & Rescue and Outdoor Adventures
See Beyond the Darkness

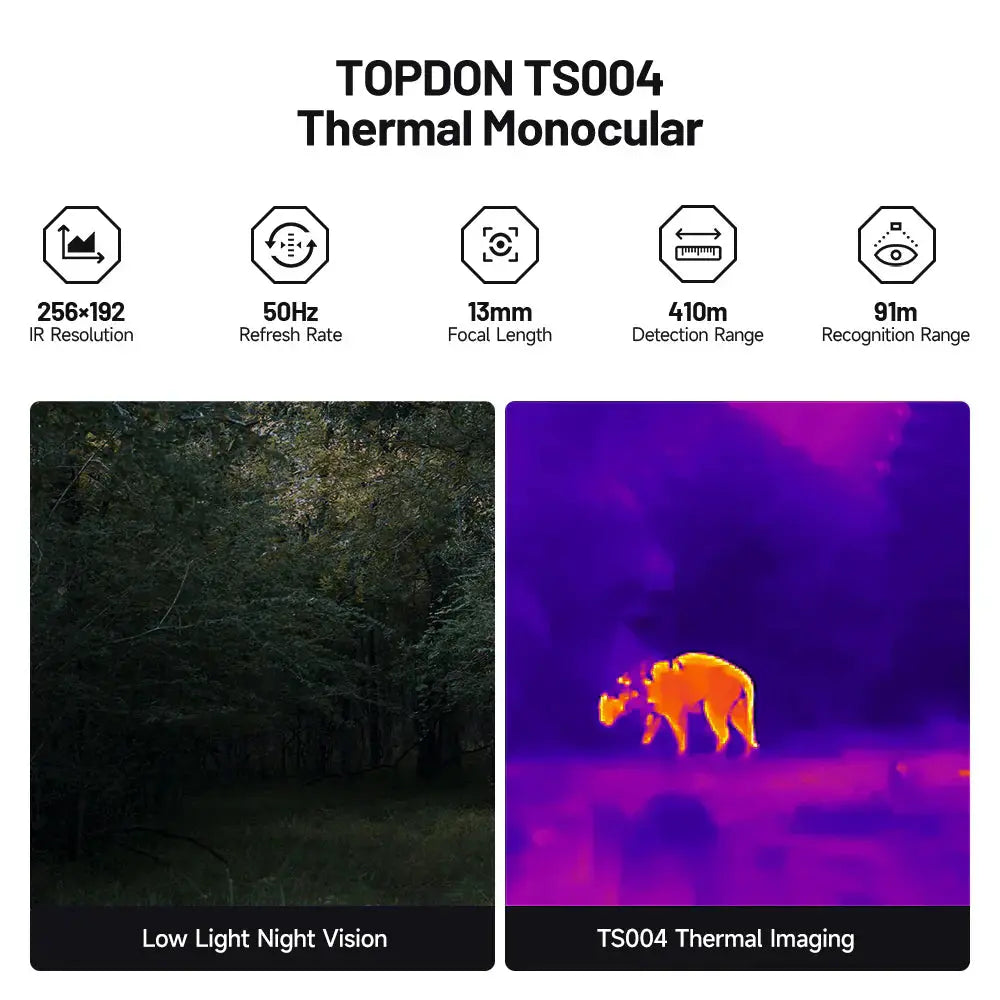

The TOPDON TS004 Thermal Imaging Monocular helps you detect wildlife, people and objects in complete darkness, fog, smoke and dense vegetation. Featuring a 256 × 192 thermal sensor, 13mm objective lens and 450-yard (410m) detection distance, the TS004 delivers clear thermal imaging for hunters, farmers, campers, wildlife observers and search & rescue professionals.
Key Features
🔥 Reveal the Unseen
Detect heat signatures even in total darkness or low-light environments without relying on visible light.

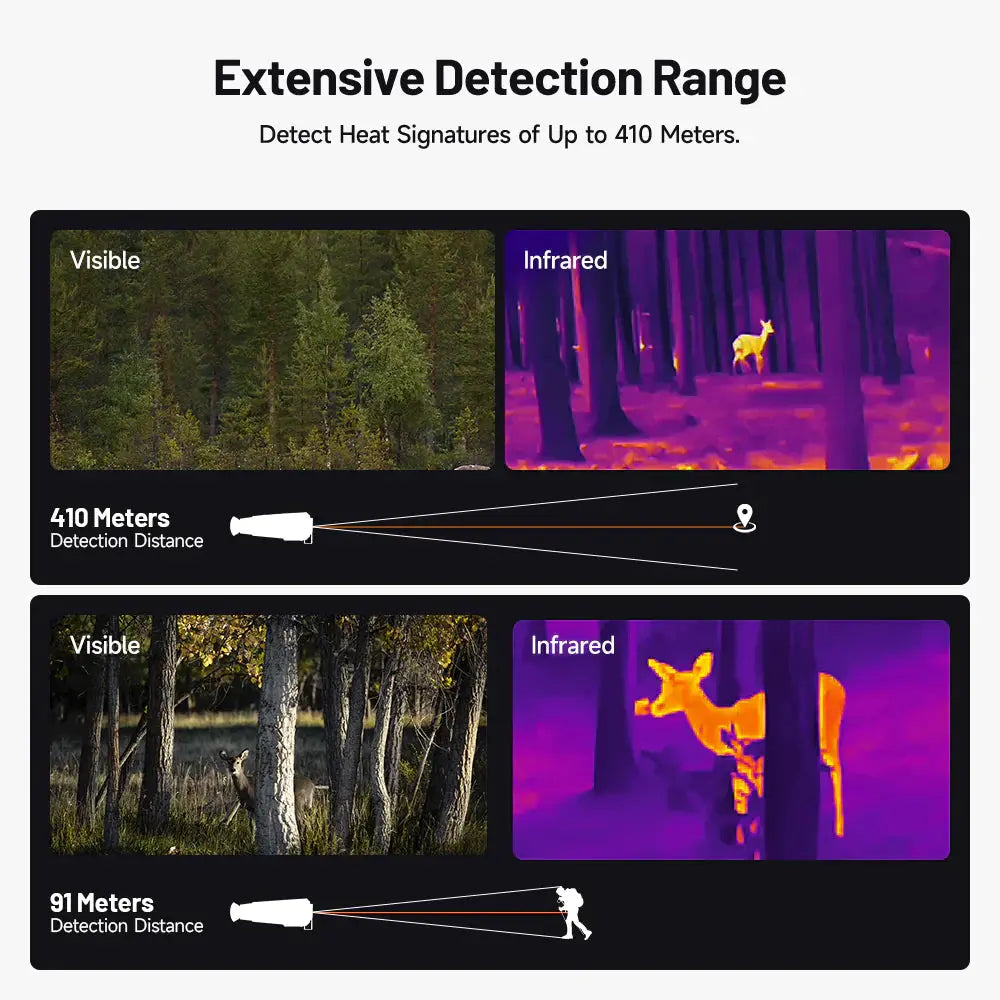

🎯 Long Detection Range
Detect targets up to 450 yards (410m) away with a recognition distance of 100 yards (91m).
🌈 Five Colour Palettes
Choose between Bird, White Hot, Black Hot, Red Hot and Fusion modes for enhanced target identification.
🔍 8× Digital Zoom
Zoom in for close-up inspection or zoom out for a wider view while maintaining excellent thermal image quality.

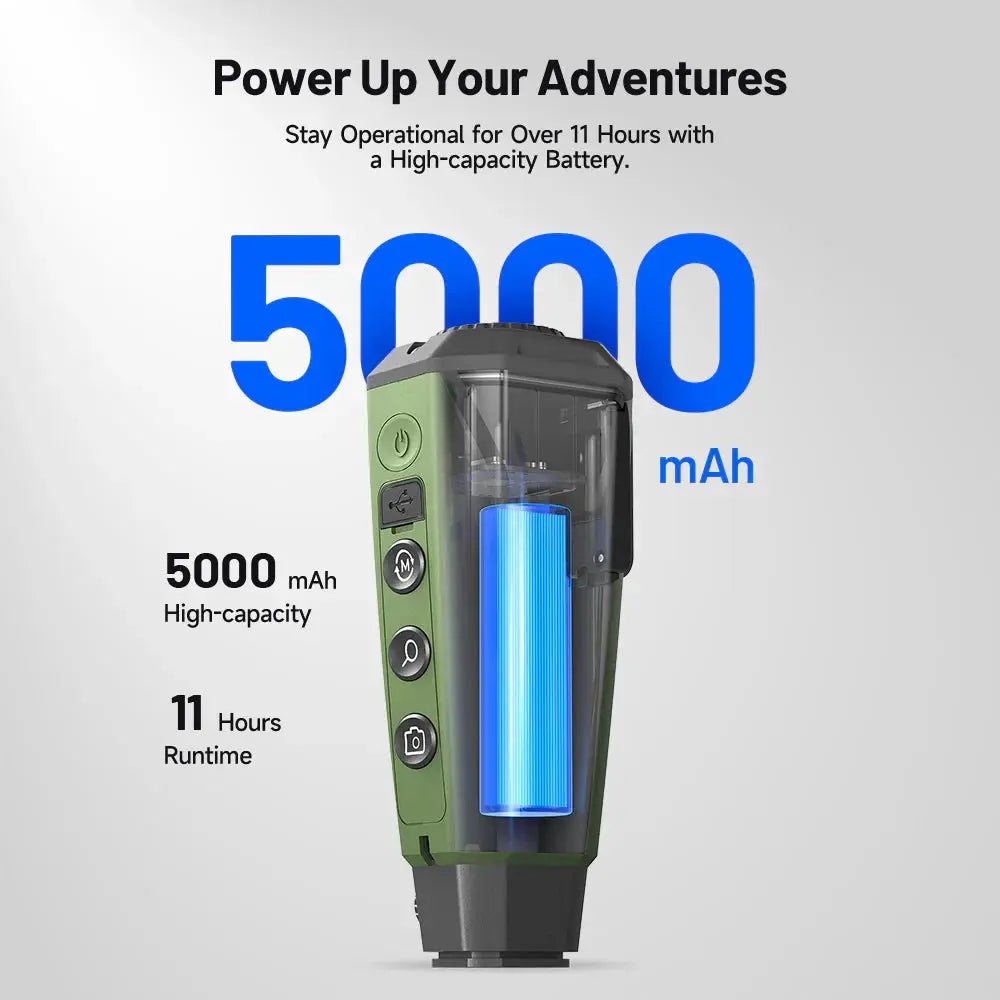

🔋 11-Hour Battery Life
The 5000mAh rechargeable battery delivers all-day thermal observation without frequent charging.

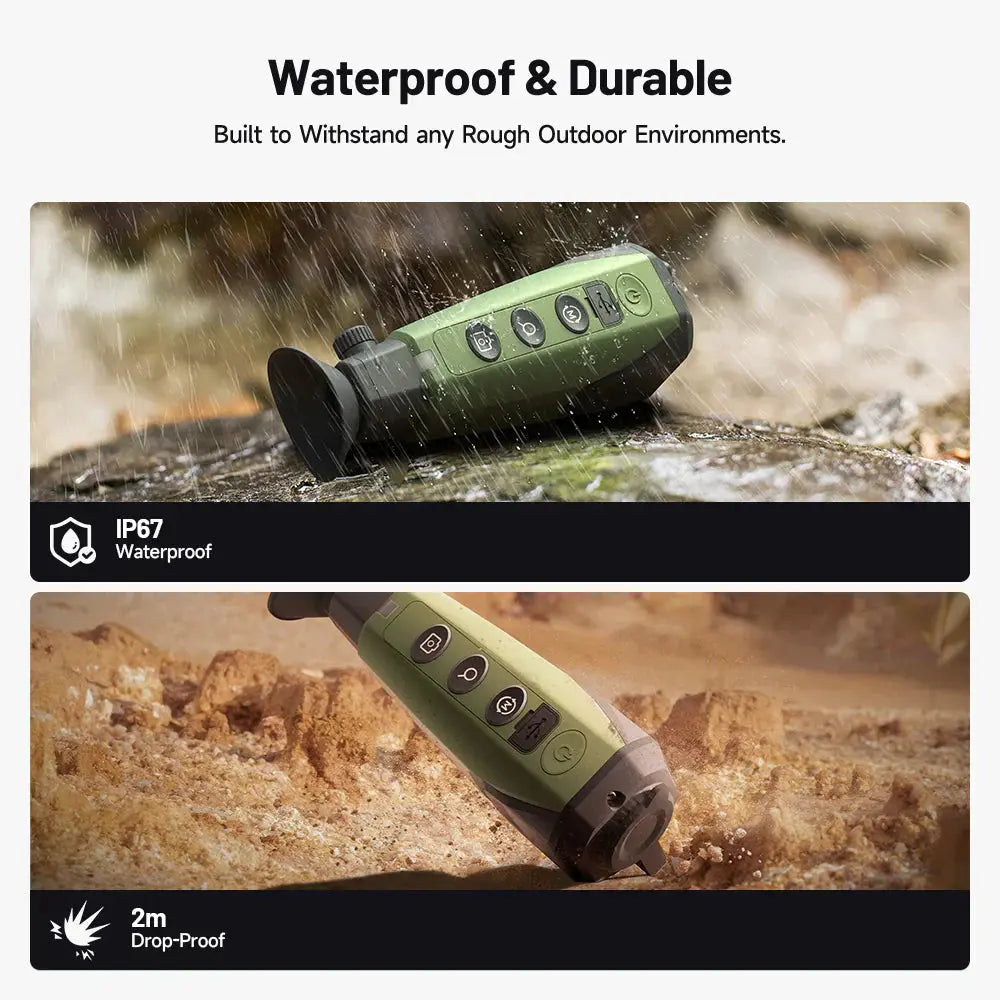

💧 Built for Outdoors
IP67 waterproof protection withstands rain, snow, mud and demanding outdoor environments.
Wi-Fi Live View & Recording
Connect the TS004 to the TopInfrared App via Wi-Fi for live thermal viewing, image capture, video recording with audio and easy sharing directly from your smartphone—even when offline.
Ideal Applications
- Wildlife Observation
- Hunting
- Camping & Hiking
- Farm & Livestock Monitoring
- Search & Rescue
- Property Inspection
- Outdoor Security
Technical Specifications
| Specification | Details |
|---|---|
| Thermal Resolution | 256 × 192 |
| Lens | 13 mm |
| Pixel Pitch | 12 μm |
| NETD | <40 mK |
| Detection Distance | 450 yd (410 m) |
| Recognition Distance | 100 yd (91 m) |
| Field of View | 13.5° × 10.1° |
| Digital Zoom | 1× / 2× / 4× / 8× |
| Refresh Rate | 50 Hz |
| Display | 640 × 480 LCOS |
| Battery Capacity | 5000 mAh |
| Operating Time | Up to 11 Hours |
| Storage | Built-in 32 GB |
| Protection Rating | IP67 |
| Operating Temperature | -20°C to 45°C |
| Dimensions | 180 × 64 × 54 mm |
| Weight | 310 g |

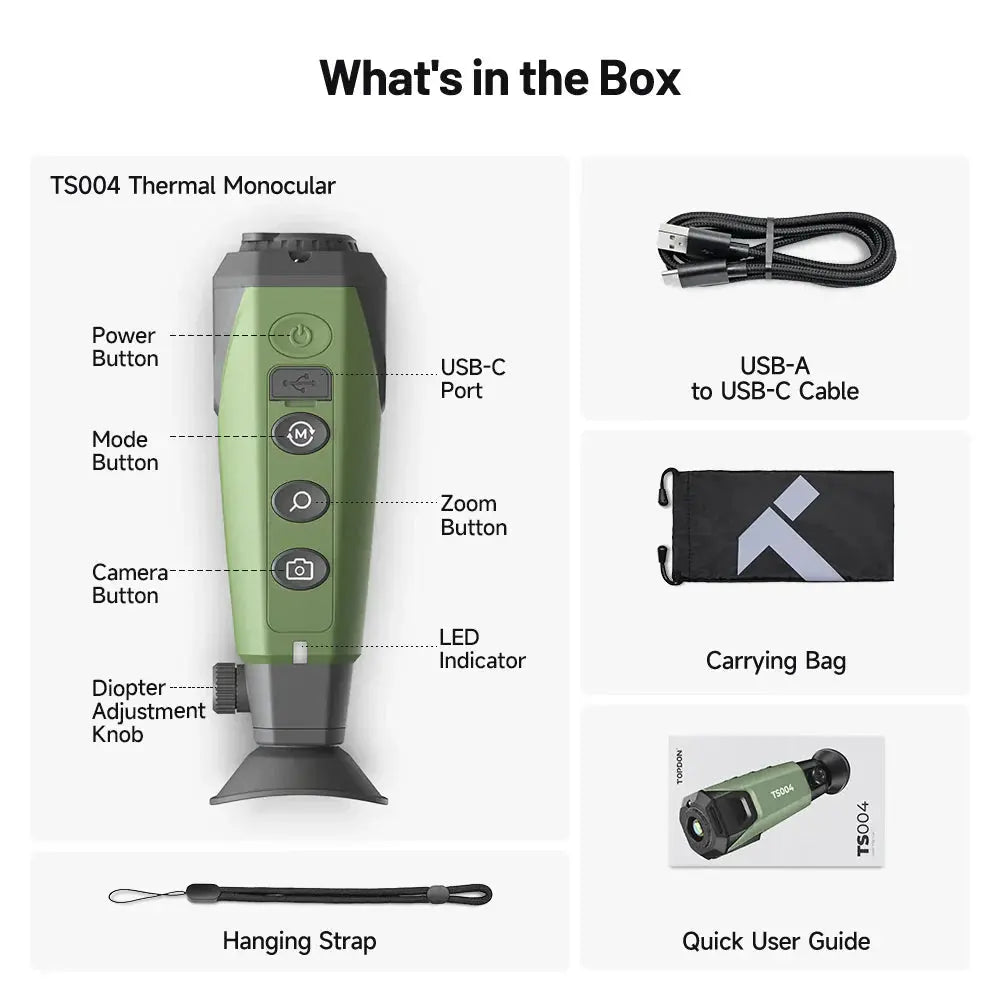

What's in the Box
- ✔ TOPDON TS004 Thermal Imaging Monocular
- ✔ USB-A to USB-C Charging Cable
- ✔ Hanging Strap
- ✔ Carrying Bag
- ✔ Quick User Guide
