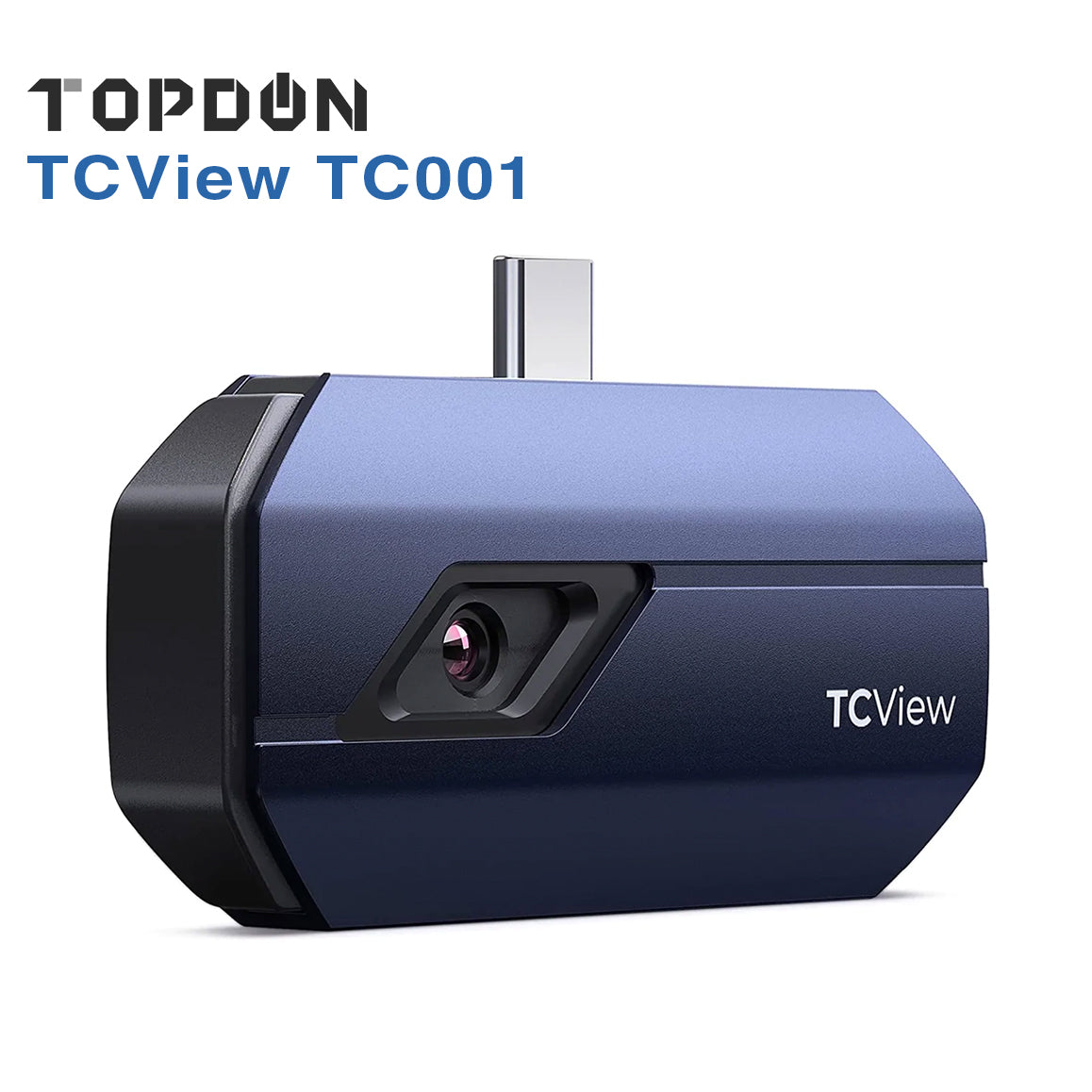

Topdon TCView TC001 Thermal imaging Camera (Android & Tablets & PC)

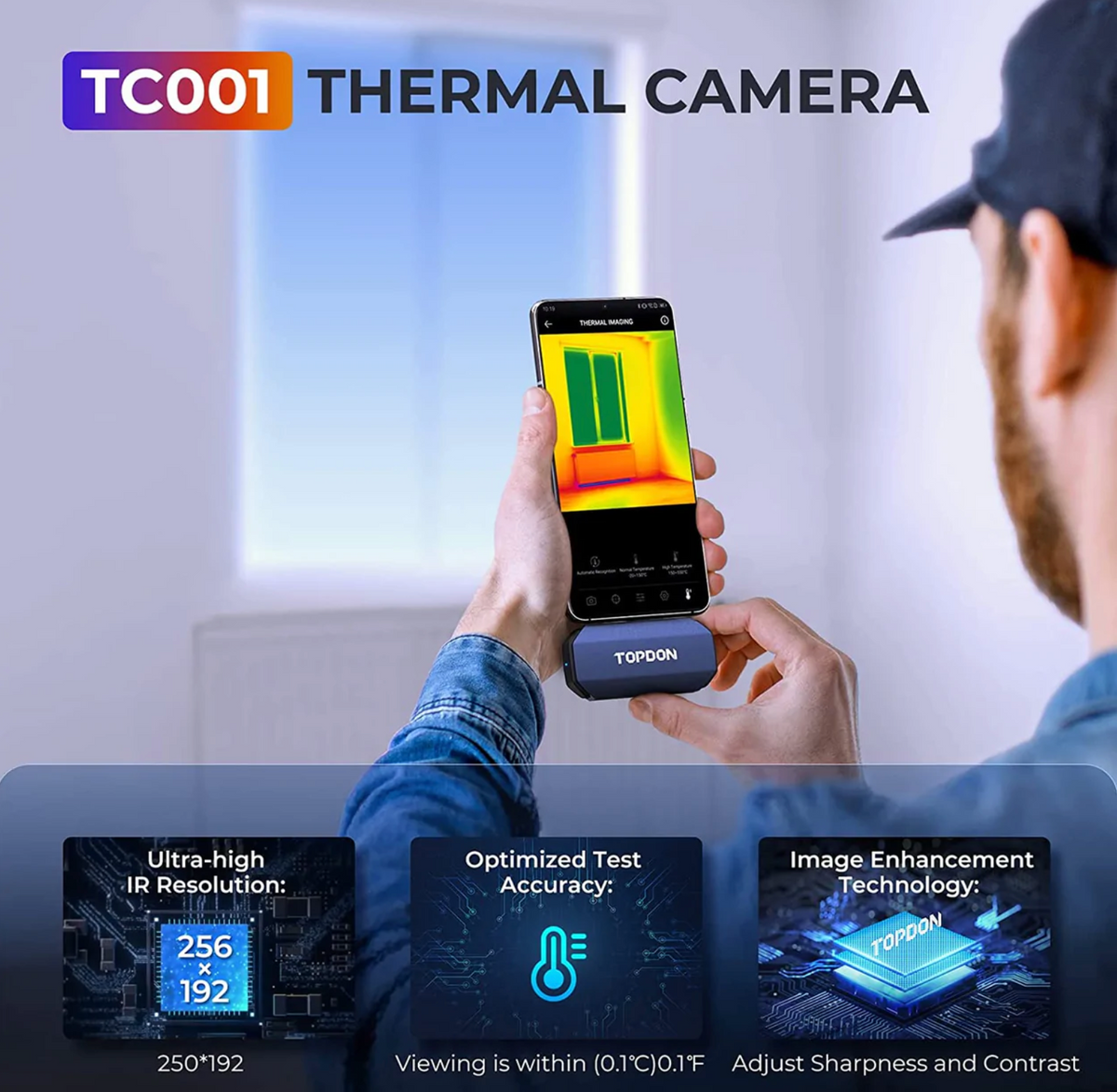

TOPDON’s TC001 is a portable camera that turns your Android smartphone/tablet or Windows laptop into a powerful thermal imager. Simply download the accompanying app, slot the TC001 in your device’s USB-C port, and unleash thermal technology that formally only belonged to special forces.
Perfect for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to protect crops and livestock.

  • 【High Resolution, Low Consumption】With ultra-high IR resolution of 256x192, the TOPDON TC001 thermal scanner displays a thermal picture of your target with high resolution. Connect the TC001 to a smartphone or a tablet, and the electronic devices will power the TC001. With consumption of only 0.35W, the TC001 works 4-7 hours for phones with 3000-5000mAh.

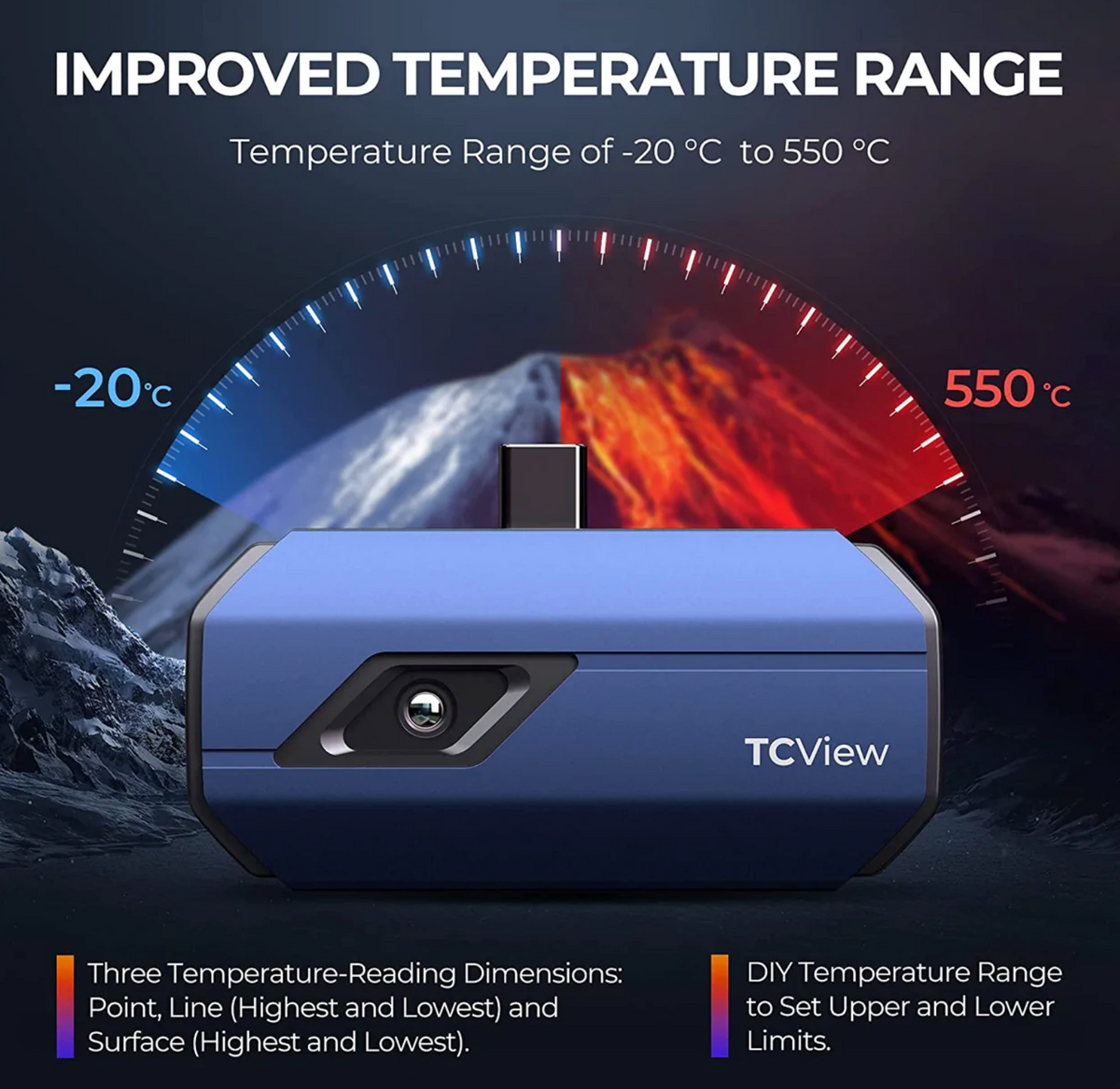

  • 【Precise Temperature Detection】With an enhanced testing range of -4℉ to 1022℉ (-20℃ to 550℃), this infrared camera can perform temperature readings accurate within 3.6℉ (2℃) or 2% of the object’s actual temperature, and measure the temperature to 0.1℃ accuracy. The TC001 can take continuous measurements of a scene and generate a waveform graph with the high, low, and average temperatures of objects.
  • 【Dimensions and 9 Color Palettes】User can manually select 3 dimensions to check temperature in the TC001 App: Point, Line (Highest and Lowest) and Surface (Highest and Lowest) detection. With up to 3 areas for each dimension, the TC can read temperatures in 9 areas simultaneously. 9 color palettes allow users to read the temperature differences in a scene with the gradient colors of their choice.

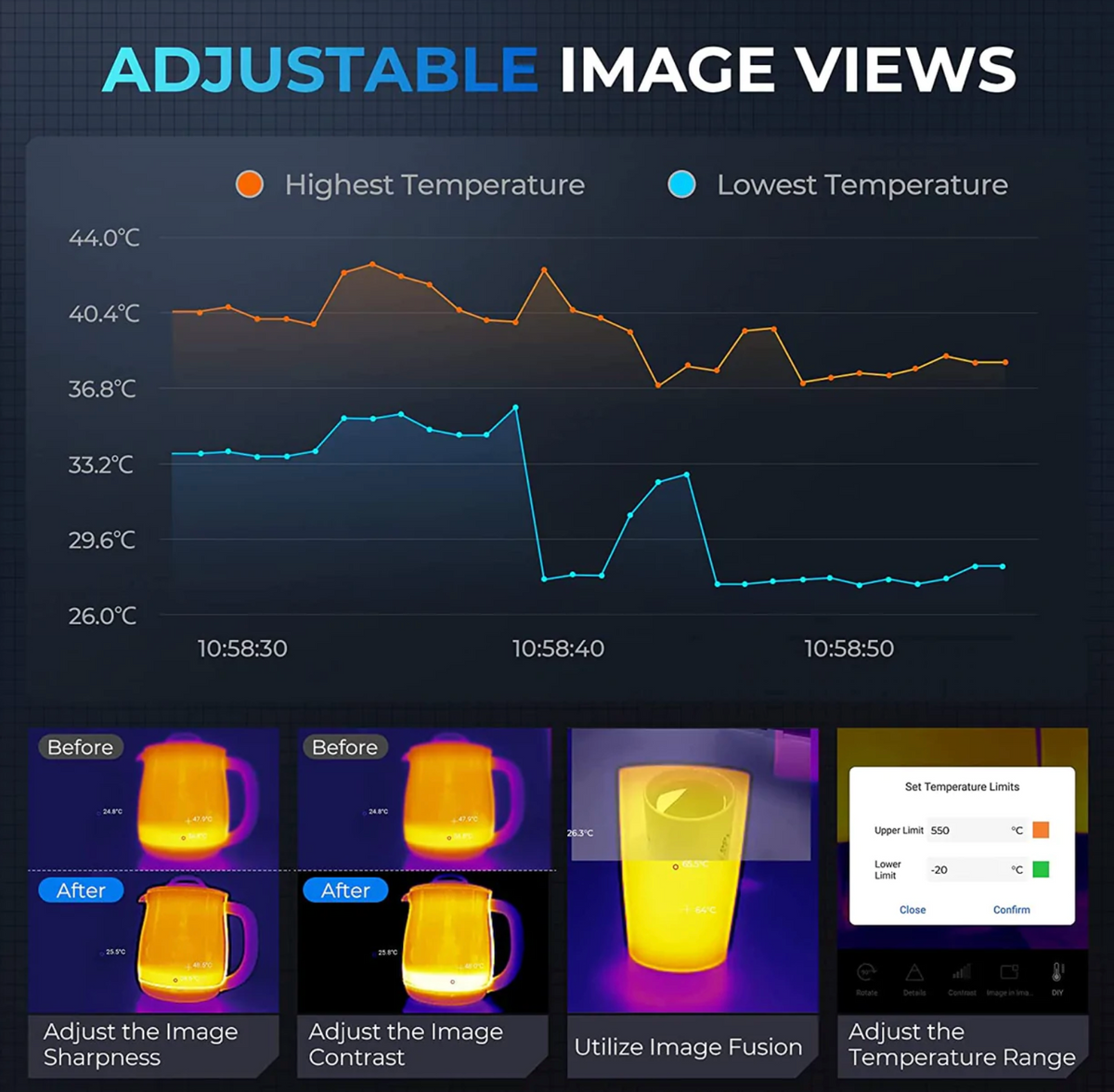

  • 【Image Enhancement Technology】TOPDON’s image enhancement technology makes the field of view clearer and more detailed by adjusting image sharpness and contrast. Image rotation function allows users to view the temperature in different angles without rotating your phones. With the image fusion function, the infrared imager can combine the IR image and visible image taken by a mobile camera.
  • 【Compact and Adaptable】Measuring 2.8x1.65x0.55 inches and weighing one ounce (or 30 grams), the thermal imager is portable, and easily pairs with android phones that support OTG functions, allowing you to monitor temperature whenever and wherever. A 19.7 inch cable offers extended length with a USB converter to bring more flexibility to temperature reading. Anti-dust EVA bag and wiping cloth provide protection and cleaning.
  • 【Shutter Switch Sound】Users are now able to manually close the shutter if you do not like to hear the shutter click when using the camera. Please don't take direct pictures of objects with temperatures over 1000 degrees or bright light, such as shooting the sun.

NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.
