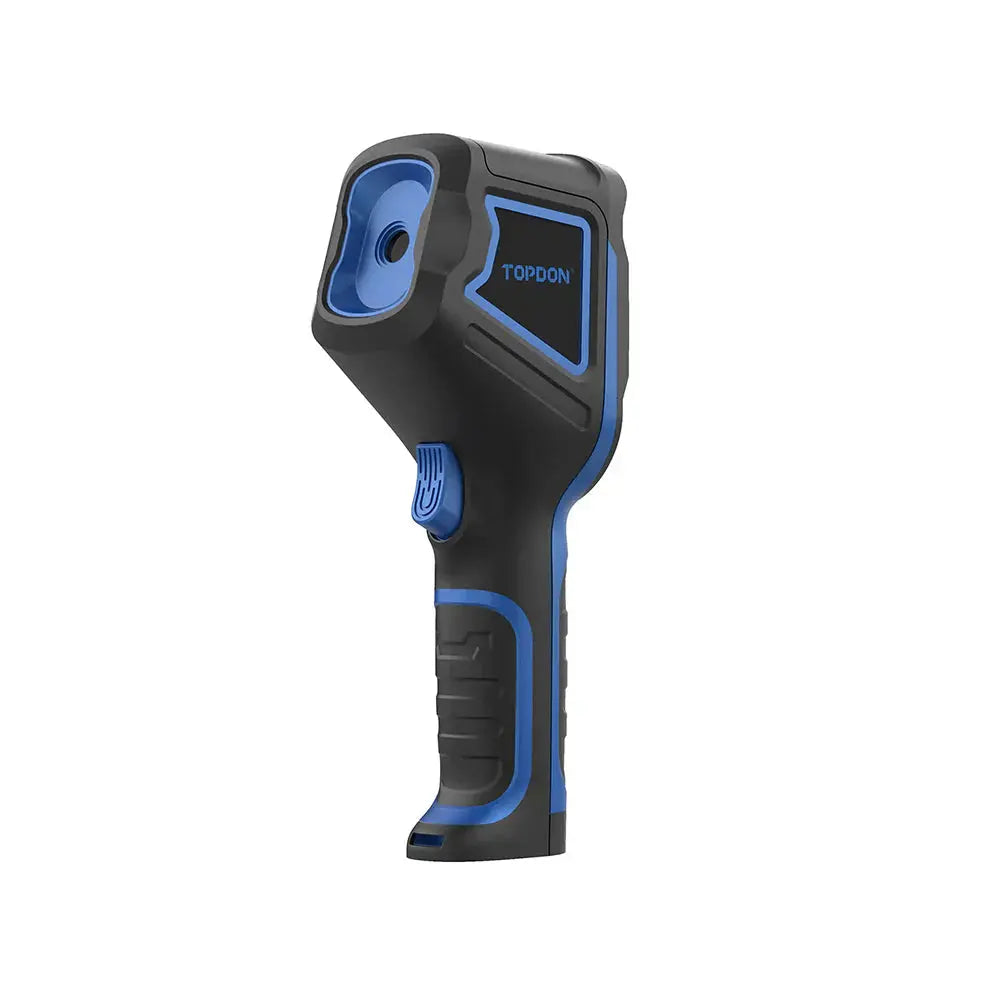

TOPDON TC004 Mini Thermal Imaging Camera
Compact Thermal Camera with TISR Image Enhancement, 240×240 Resolution & 15-Hour Battery Life
Compact Thermal Imaging. Professional Results.
The TOPDON TC004 Mini Thermal Imaging Camera is an affordable, entry-level handheld thermal camera designed for HVAC technicians, electricians, mechanics, home inspectors, and DIY users. Equipped with a 128 × 128 infrared sensor and advanced TISR image enhancement, it delivers enhanced thermal images up to 240 × 240 resolution. Lightweight, portable, and easy to operate, the TC004 Mini makes it simple to locate electrical faults, overheating components, water leaks, insulation problems, and mechanical issues with confidence.
Key Features
🔥 TISR Image Enhancement

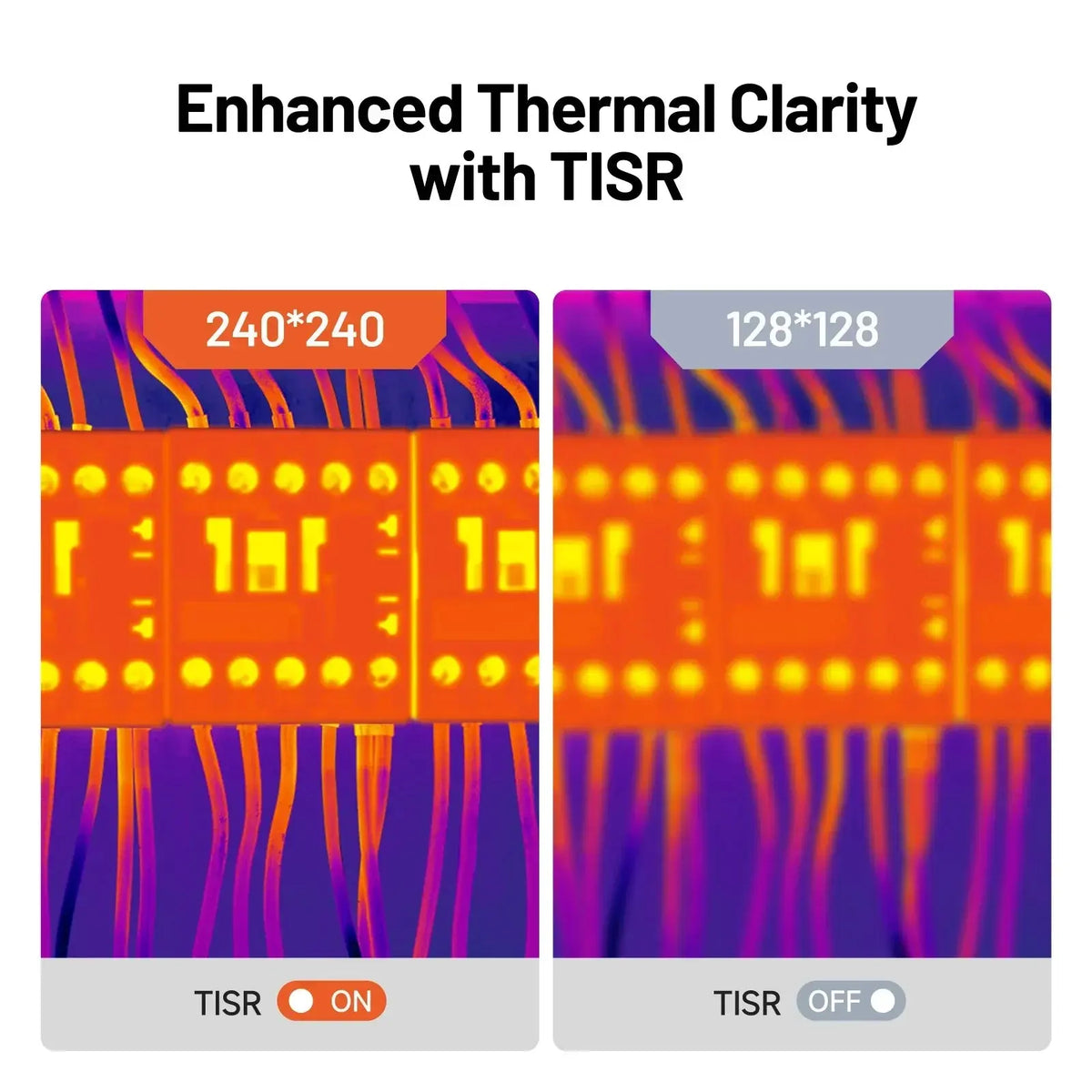

Advanced TISR technology enhances thermal resolution from 128 × 128 to 240 × 240, providing sharper thermal images and improved fault detection.
⚡ Smooth 25Hz Refresh Rate
Capture thermal images smoothly with a 25Hz refresh rate, making inspections quicker and more accurate.

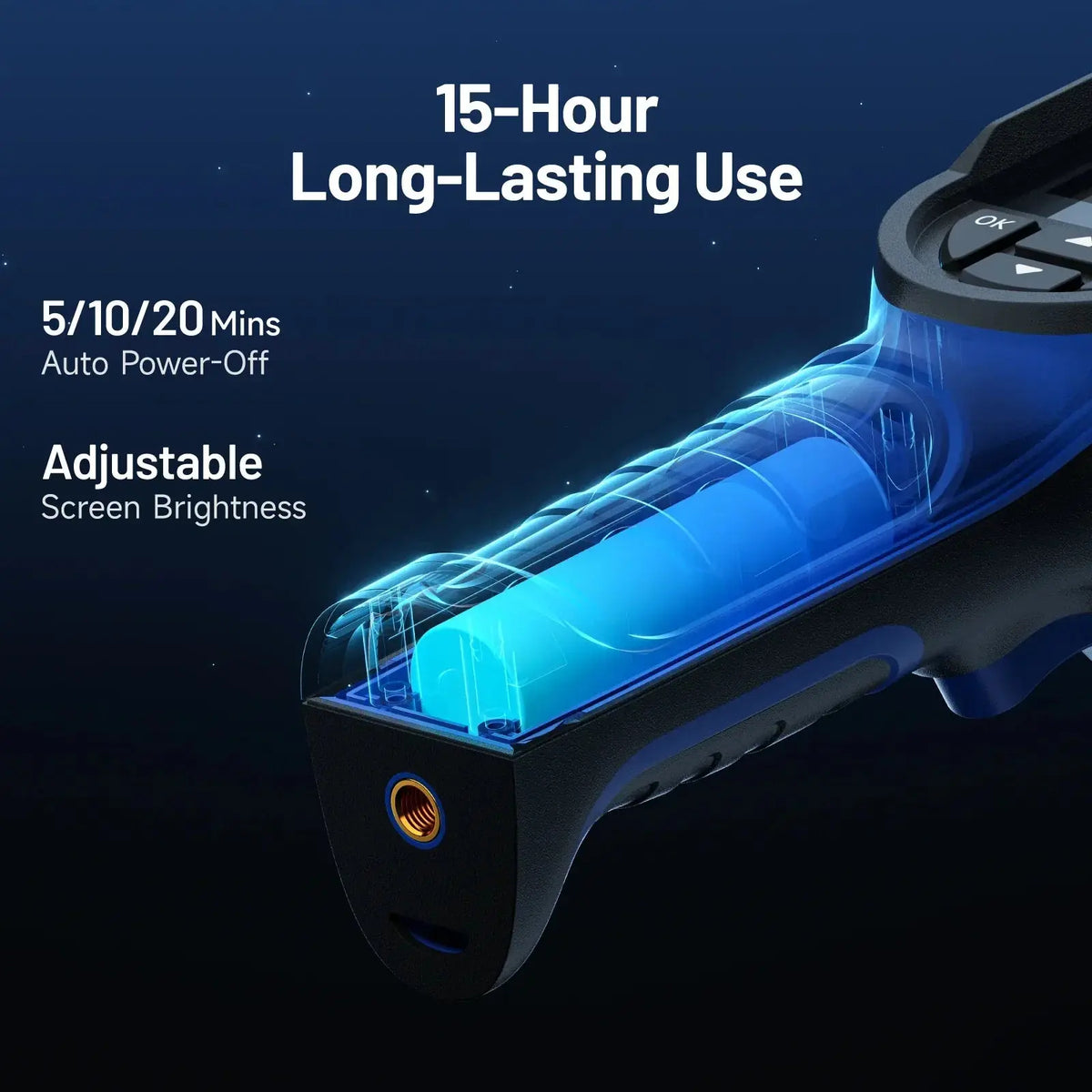

🔋 Up to 15 Hours Runtime
Powered by a built-in 2,900mAh rechargeable battery, the TC004 Mini delivers up to 15 hours of continuous operation with adjustable auto power-off settings.

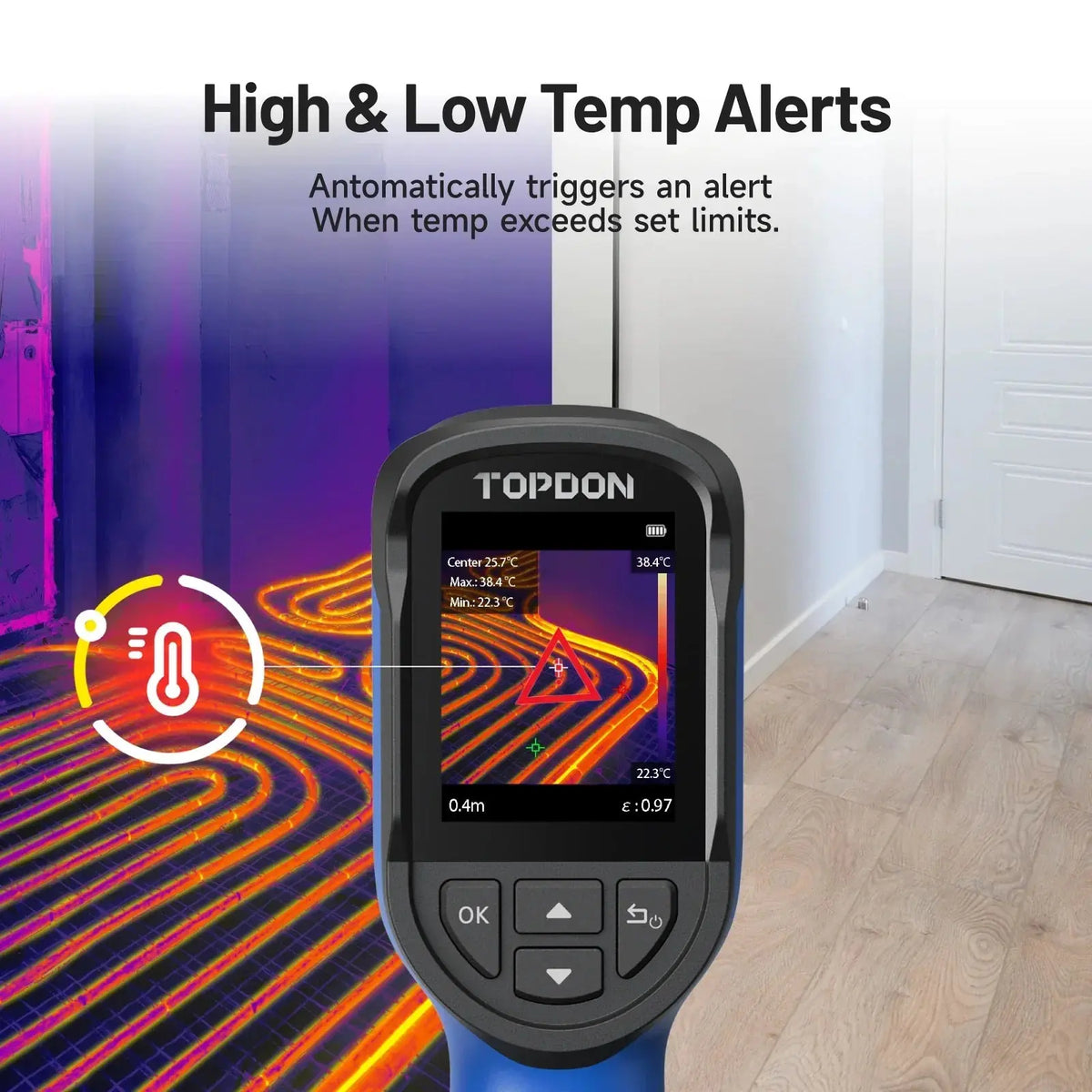

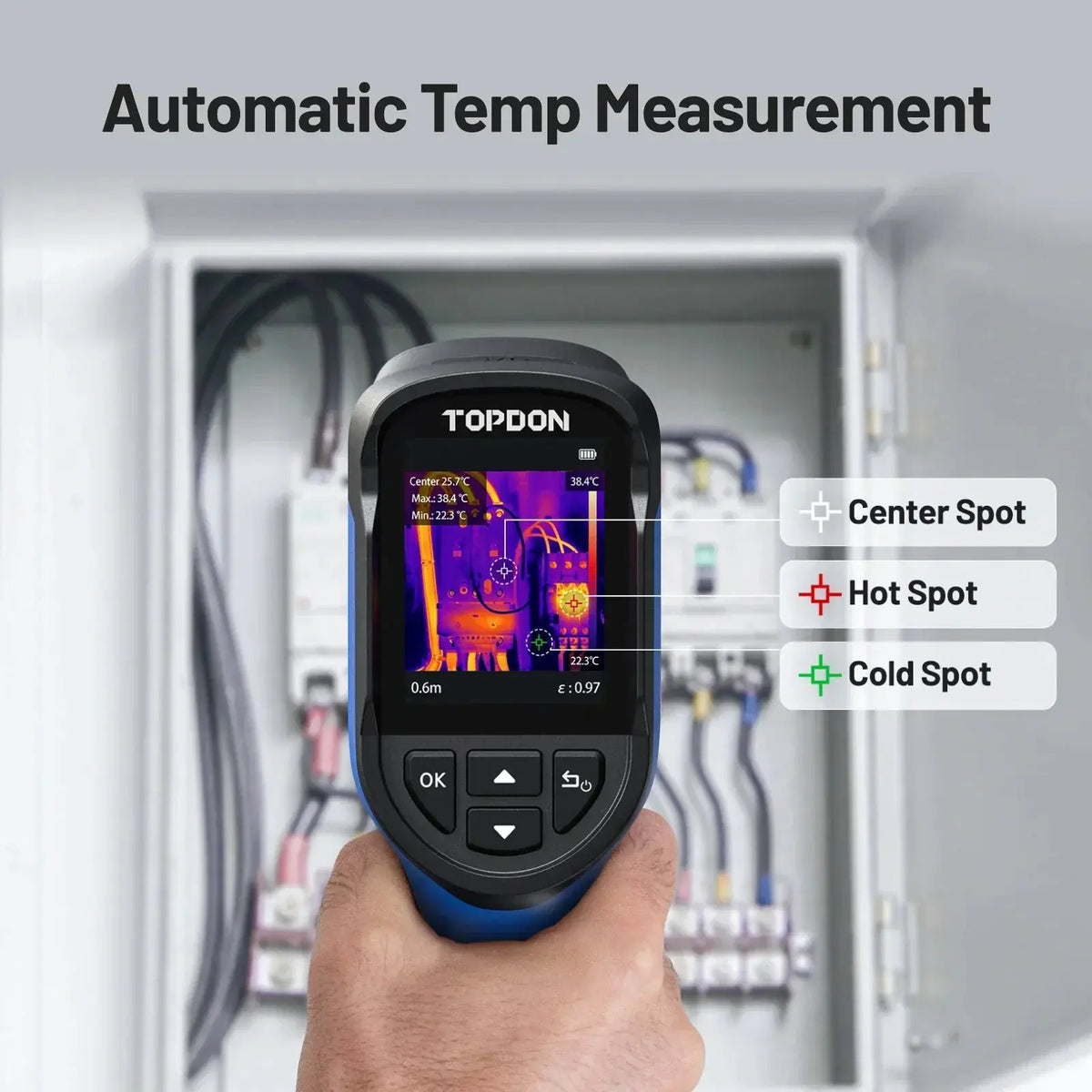

🌡 Smart Temperature Alerts
Automatically detects maximum, minimum and centre temperatures. When preset limits are exceeded, the camera triggers a visual alert and automatically captures an image.

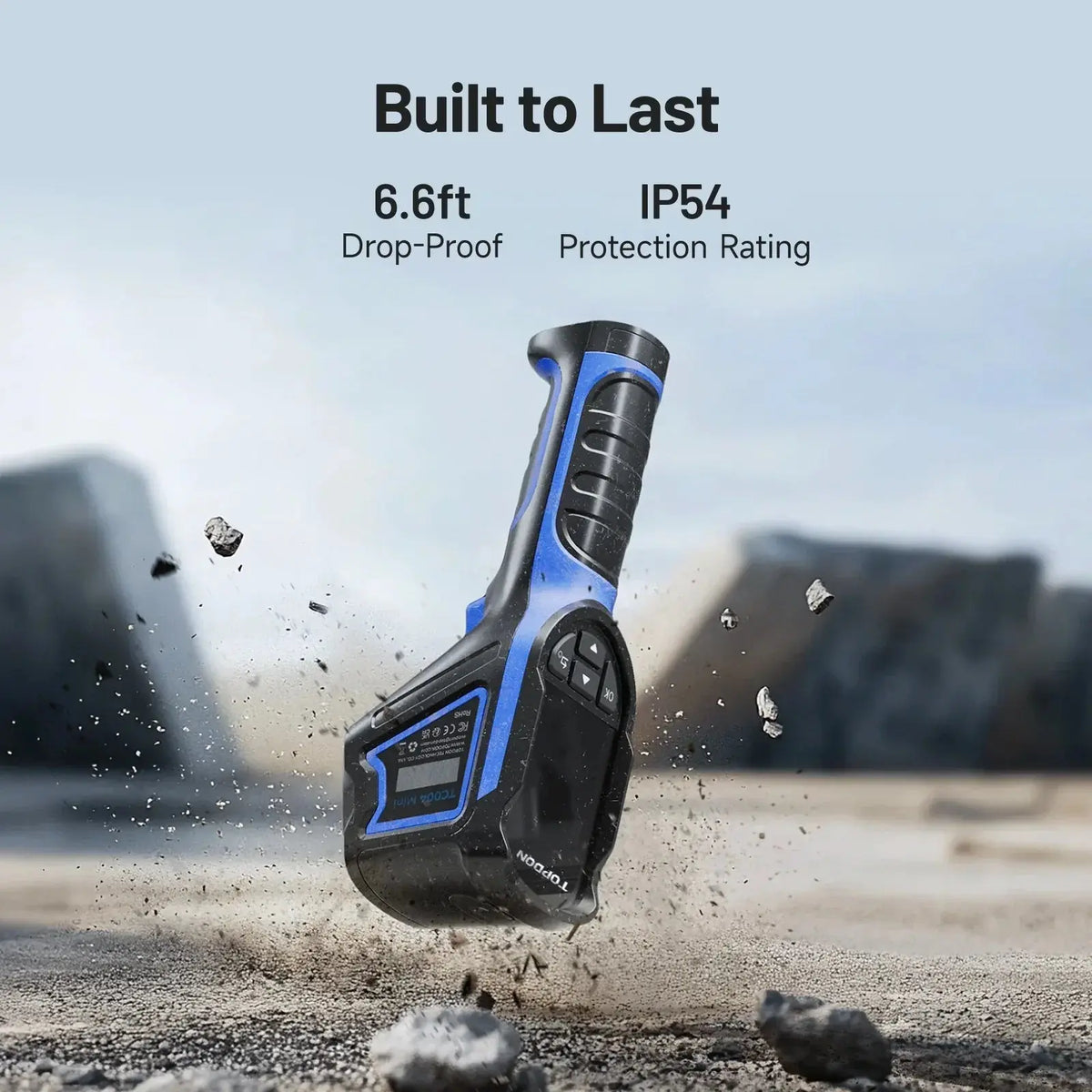

💪 Built for Everyday Use
IP54-rated protection and 2-metre drop resistance ensure reliable performance in workshops, construction sites and maintenance environments.

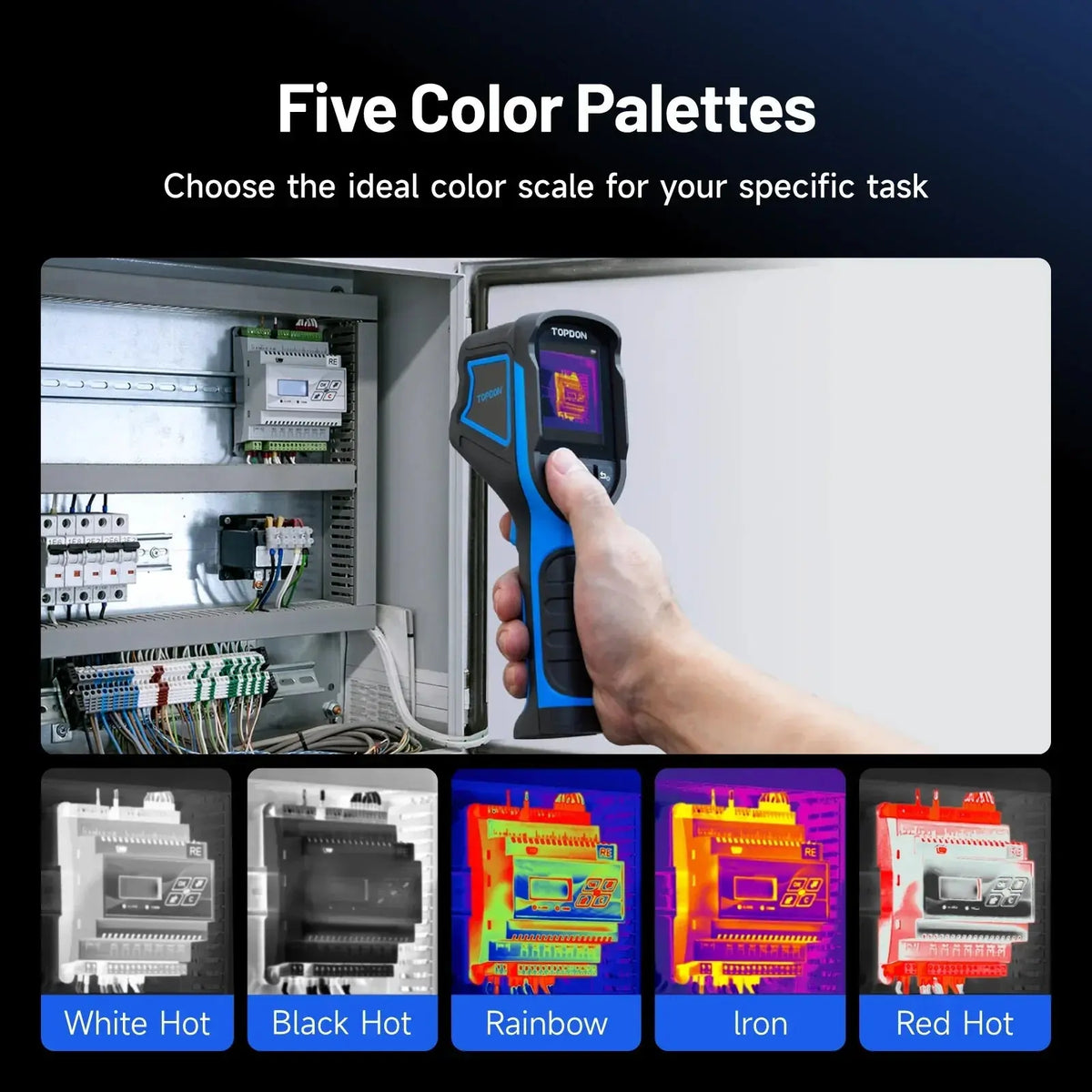

🎨 Five Colour Palettes
Switch between White Hot, Black Hot, Iron, Rainbow and Red Hot display modes to improve visibility across different inspection tasks.

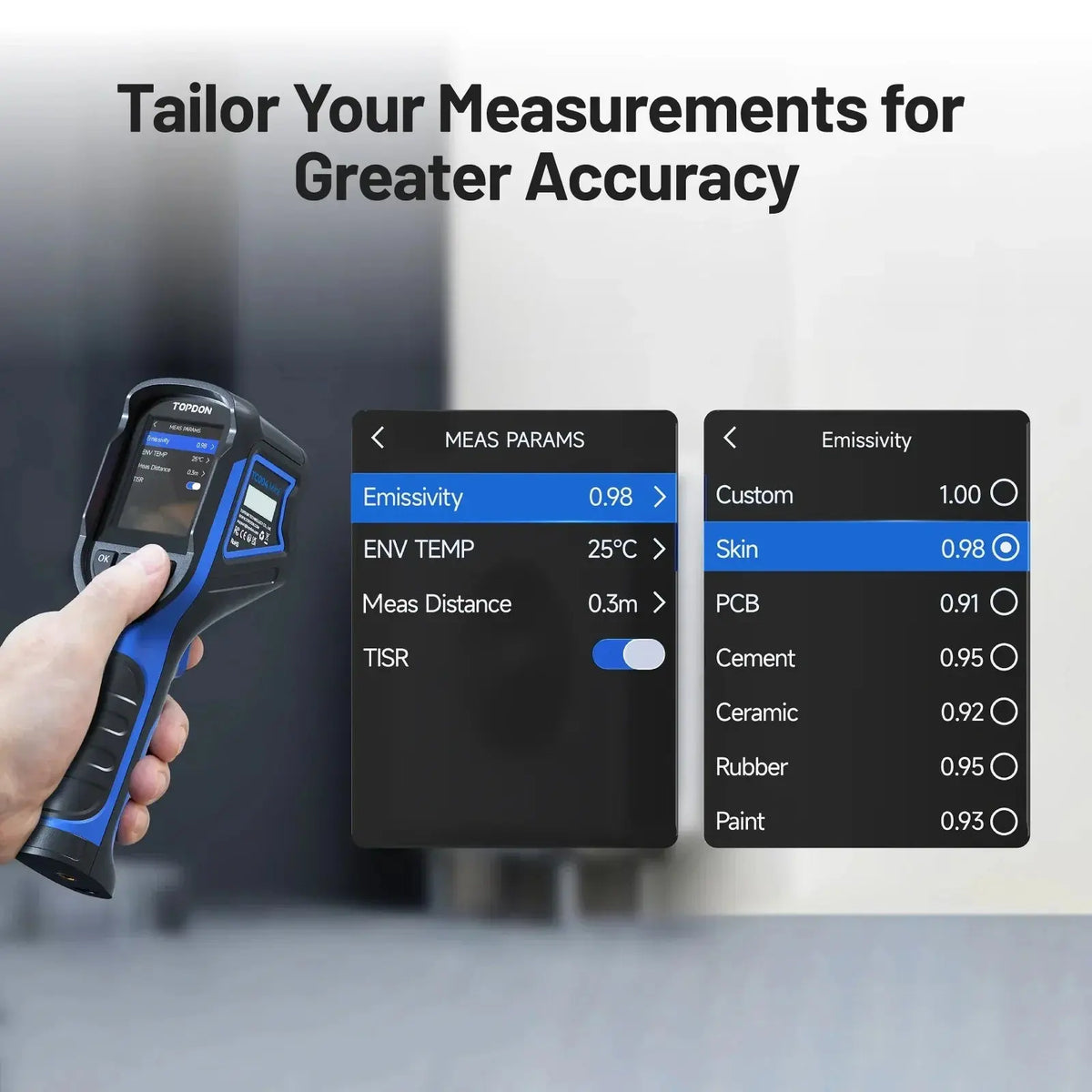

Accurate Thermal Measurements
The TC004 Mini allows users to adjust emissivity, measurement distance, and ambient temperature for improved measurement accuracy. With a thermal sensitivity of <40mK, it easily identifies temperature differences caused by electrical faults, moisture intrusion, insulation defects, or overheating components.
Ideal Applications
- Home Energy Inspections
- HVAC Maintenance
- Water Leak Detection
- Electrical Inspections
- Industrial Maintenance
- Automotive Diagnostics
- Building Inspections
- Mechanical Equipment Troubleshooting
Technical Specifications
| Specification | Details |
|---|---|
| Infrared Resolution | 128 × 128 |
| Enhanced Resolution | 240 × 240 (TISR) |
| Temperature Range | -20°C to 450°C (-4°F to 842°F) |
| Refresh Rate | 25Hz |
| Spectral Range | 8–14 μm |
| Field of View | 40° × 30° |
| Focal Length | 3.2 mm |
| Thermal Sensitivity (NETD) | <40 mK |
| Memory | 512 MB |
| Battery Capacity | 2,900mAh Rechargeable |
| Battery Runtime | Up to 15 Hours |
| Protection Rating | IP54 |
| Drop Resistance | 2 Metres |
What's in the Box
- ✔ TOPDON TC004 Mini Thermal Imaging Camera
- ✔ Hanging Strap
- ✔ USB-A to USB-C Charging Cable
- ✔ Quick User Guide
