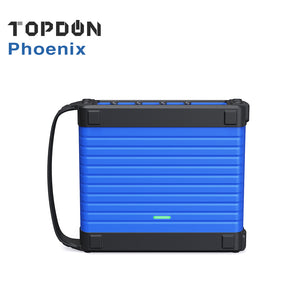

Topdon Phoenix Oscilloscope Diagnostic Tools 4-Channel

High Memory Depth

With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast.

Special Fast Storage Function

Compared with ordinary scopes which require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap, reducing save time by more than 70%.

Convenient Cursor Operation

You can open horizontal and vertical cursors separately with one tap. Each cursor can be dragged independently. Cursor tracking is achieved directly through a simple highlight tap, increasing overall efficiency by more than 80%.

Soft Keyboard Input

When inputting names and characters, ordinary scopes can only use the knob to select characters one by one. The Phoenix Scope supports soft keyboard input, which improves efficiency by more than 90%.

Customizable And Loadable System Settings

Various preferred system settings are available and can be saved as configuration files. This allows you to load configuration files directly to view them according to your preferences without having to set them repeatedly.

Waveform Recording And Playback

The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel.

Supports Mathematical Operations On Waveforms

This feature supports addition, subtraction, multiplication, and division calculations of two-channel waveforms in addition to Fast Fourier Transform.

Supports A Variety Of Automotive Tests

This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test.
