LAUNCH X431 PRO3 LINK SmartLink V1 Truck & Passenger Diagnostic Scan tool
- Regular
- $3,799.00 incl. GST
- Sale
- $3,799.00 incl. GST
- Regular
- $4,699.00
Sold Out
- Unit Price
- per

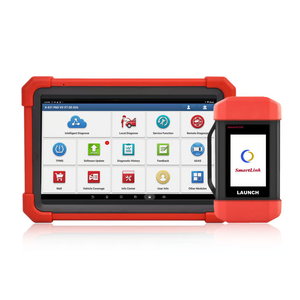

LAUNCH X431 PRO3 LINK SmartLink V1 Truck & Passenger Diagnostic Scan Tool
DUAL DIAGNOSTIC MODE SCANNER With the innovative revolution of intelligent diagnosis, the X-431 PRO3 LINK takes dual diagnostic modes (local diagnosis and Smartlink remote diagnosis). It not only inherits the powerful diagnostic strength of PRO series, but also supports Smartlink remote diagnosis which expands diagnostic functions with high-end X-431 scanners, third party scanners and OE...
Passenger Features
- Enables you to diagnose passenger vehicles with Smartlink C.
- Full system vehicle coverage for U.S., Asian and European markets over 110 manufacturers, which is continually updated.
- Real-time voltage display is supported, which helps you monitor the voltage condition of the vehicle during the diagnosis.
- Intelligent diagnostic enables automatic VIN identity to automatically access systems quickly.
- Intelligent and local diagnostic, which include full diagnostic functions, such as read/clear DTC, live data streaming, bi-directional control, coding, etc.
- Guided functions for VW and AUDI. (Support a total of over 30,000 functions for VW and AUDI)
- Optional ADAS calibration function increases more revenue.
- Advanced coding and programming function.
- An extended solution to support TPMS service.
- The software is available to purchase separately on the MALL at any time.
- Built-in repair information and training videos help to track and fix issues fast.
Commercial Features
- Access to the vehicle system faster throughout modular design.
- Support X-431 Fix database to fix the problems.
- The software is available to purchase separately on the Mall at any time.
- Brand new tablet integrated with comprehensive heavy-duty coverage.
- Empower you to diagnose light, medium & heavy-duty vehicles.
- Flexible options for USB, Bluetooth and Wi-Fi connection.
- Basic functions include Read & clear DTC, VIN scan, wireless connection, diagnostic record review, bi-directional test, etc.
- Support Smartlink Remote Diagnosis.
- Optional ADAS HD calibration increases more revenue.
- 21 Service Functions: DPF Regen, Parameter Setting, Cylinder Deactivation Compression, Oil Maintenance Reset, Injector Coding, Speed Limit Adjustment, Idle Speed Adjustment, Fan Calibration, Remote Throttle, Urea Drive(DEF), Deep Clearing of DTCs, Flash Data Conversion, Brake Reset, Transmission Replacement, Nox Sensor Reset, Aftertreatment, Immobilizer, Suspension, Odometer, Language Change, PTO Change
- Toolbox for multiple add-on modules, including Oscilloscope, Sensorbox, Battery Tester, Videoscope and Wi-Fi printer, etc.
Service Functions
Specification
| Operation System | Android 10.0 |
| Display | 10.1″, 1280*800 |
| CPU | 2.0GHz, Quad-core |
| Memory | 4GB |
| Storage | 64GB |
| Battery | 47.88Wh (7.6V, 6300mAh) |
| Camera | Rear 8MP |
| VCI Connection | Bluetooth |
| Dimension | 274*190.5*40.5 mm |
| Interface | TYPE A*1 & TYPE C*1 |
