Launch X431 PAD VII Elite Professional Diagnostic Scan Tool Support Online Coding and Programming

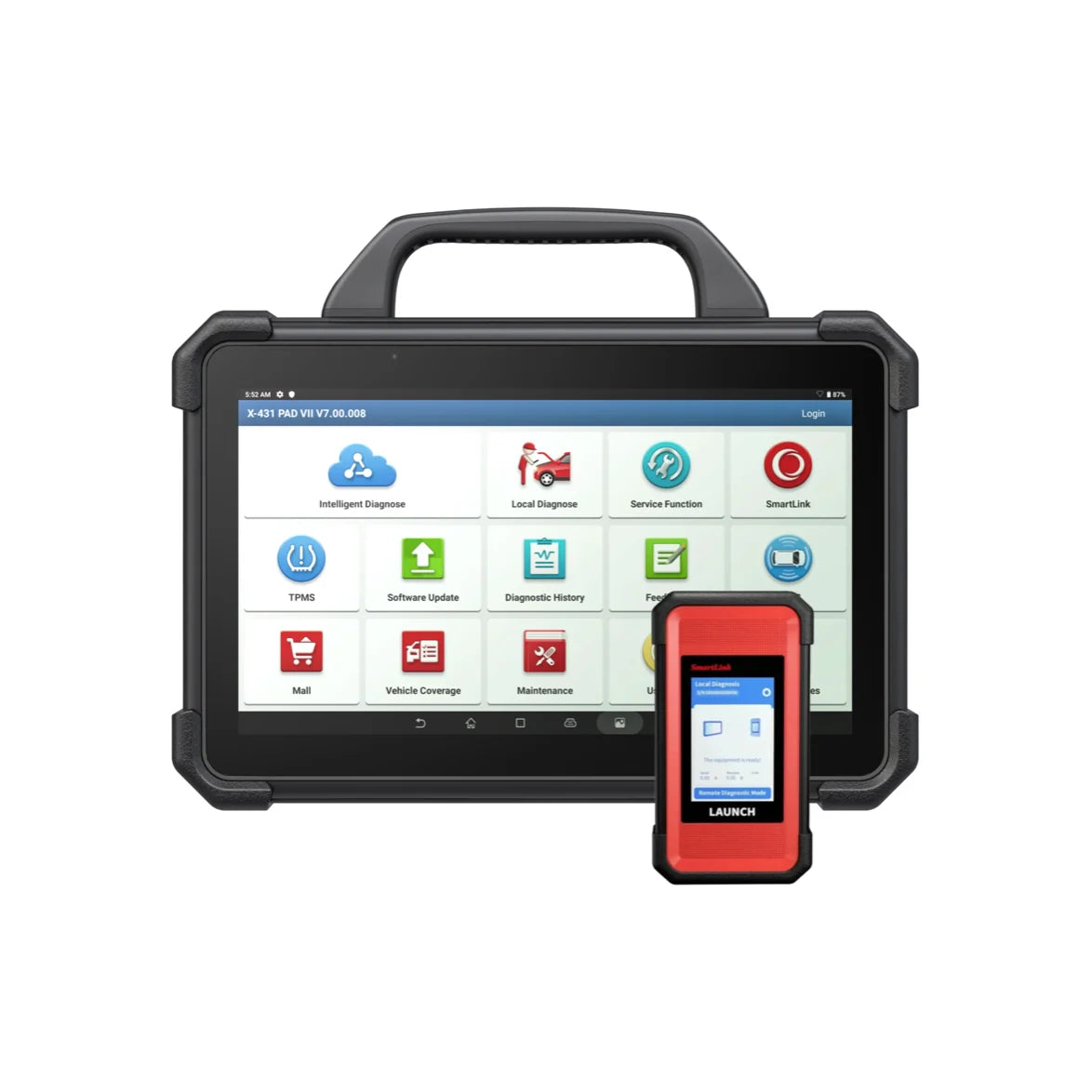

LAUNCH X431 PAD VII Elite Professional Diagnostic Scanner

The LAUNCH X431 PAD VII Elite is an advanced professional diagnostic scanner designed for automotive workshops, mechanics and experienced technicians. Powered by the SmartLink C VCI, it combines full-system diagnostics, bi-directional control, ECU coding, online programming and topology mapping in one comprehensive diagnostic platform.

With support for passenger vehicles and commercial vehicles, plus optional ADAS calibration and extended diagnostic modules, the X431 PAD VII Elite offers a flexible solution for workshops handling complex vehicle diagnostics and repair tasks.

Key Features

• 2 Years Free Online Updates: Keep diagnostic software up to date during the included update period.
• Full-System Diagnostics: Read and clear fault codes, view live data and perform active tests across supported vehicle systems.
• Advanced ECU Coding & Programming: Access supported coding, guided functions and online programming workflows.
• J2534 Pass-Thru: Connect with compatible OEM diagnostic software for supported programming tasks.
• Topology Mapping: Visualise supported vehicle control modules and communication status to help identify faults.
• 32+ Service Functions: Access a broad range of maintenance, adaptation and reset functions.
• ADAS Calibration: Expand into driver assistance system calibration with compatible equipment and software.
• Passenger & Commercial Vehicle Support: SmartLink C supports multiple diagnostic standards for compatible vehicle applications.
• Remote Diagnosis: Access supported remote diagnostic services over a network connection.
• Expandable Platform: Add compatible diagnostic modules and services through the LAUNCH Mall.

Full-System Diagnostics & Bi-Directional Control

The X431 PAD VII Elite provides comprehensive diagnostic access to supported electronic control modules. Technicians can identify faults, assess vehicle data and perform active tests to help pinpoint the cause of vehicle problems.

• Read and clear diagnostic trouble codes (DTCs)
• View live data streams and vehicle system information
• Perform bi-directional active tests on supported components
• Automatically identify vehicle VIN on supported models
• Use manual vehicle selection for traditional diagnostics when required
• Monitor vehicle voltage during diagnostic operations
• View supported control modules through topology mapping

Advanced ECU Coding & Programming

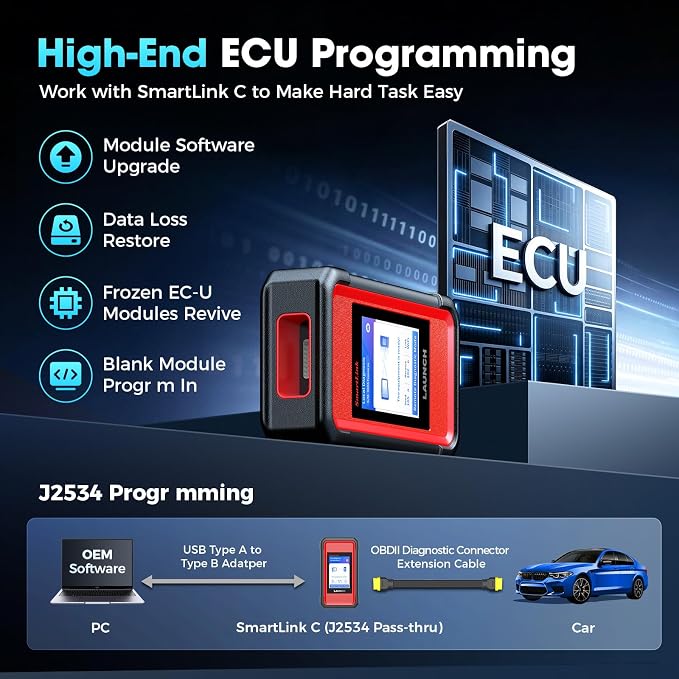

Designed for advanced workshop requirements, the LAUNCH X431 PAD VII Elite supports ECU coding, adaptations and selected online programming functions on compatible vehicles. SmartLink C also supports J2534 Pass-Thru for compatible OEM software and programming workflows.

• ECU coding and supported configuration changes
• Online programming for selected vehicle brands and models
• Guided functions for supported Volkswagen and Audi vehicles
• FCA Security Gateway (SGW) access through supported AutoAuth workflows
• Immobiliser and anti-theft functions on supported vehicles
• CAN FD and DoIP communication protocols

Note: ECU coding, online programming, guided functions and immobiliser operations depend on vehicle compatibility, software availability, network access and any required OEM accounts or subscriptions. J2534 hardware support does not guarantee programming support for every vehicle.

32+ Service & Maintenance Functions

Access a wide range of service functions for routine maintenance, component replacement and vehicle system calibration. Available functions vary by vehicle make, model and year.

• Oil Service Reset
• Electronic Parking Brake (EPB) Reset
• ABS Bleeding
• Steering Angle Sensor (SAS) Reset
• Battery Management System (BMS) Reset
• Diesel Particulate Filter (DPF) Regeneration
• TPMS Reset
• Injector Coding
• Electronic Throttle Adaptation
• Immobiliser Functions
• Gearbox Reset and Gear Learning
• AdBlue and NOx Sensor Reset
• EGR Adaptation
• Air/Fuel Ratio Reset
• Coolant Bleeding
• Headlamp Adjustment
• Sunroof Initialisation
• Suspension System Reset
• Stop/Start System Settings
• Window and Seat Calibration
• Transport Mode and Language Settings

SmartLink C VCI – Advanced Vehicle Communication

The LAUNCH SmartLink C is a multi-protocol diagnostic interface designed for professional vehicle diagnostics, remote diagnostic services and compatible Pass-Thru applications. It supports multiple connection methods and communication protocols for flexible workshop use.

• USB, Bluetooth and Wi-Fi connectivity
• 2.4GHz and 5GHz Wi-Fi support
• J2534, D-PDU and RP1210 diagnostic standards
• CAN FD and DoIP protocols
• Passenger car and supported commercial vehicle diagnostics
• Compatible software and firmware updates
• Remote diagnostic box functionality with supported services

ADAS Calibration & Optional Diagnostic Modules

Expand the capabilities of your workshop with compatible LAUNCH accessories and optional diagnostic equipment. ADAS calibration and additional module functions may require separate hardware, software or activation.

• ADAS Calibration: Support compatible driver assistance system calibration solutions.
• Videoscope: Inspect hard-to-reach areas with compatible inspection equipment.
• Oscilloscope: Analyse electrical signals using compatible diagnostic hardware.
• Sensor Box: Support selected sensor testing applications.
• TPMS Tools: Expand tyre pressure monitoring system service capabilities.
• Key & Immobiliser Tools: Access supported key programming and anti-theft functions.
• Battery Tester: Perform battery testing with compatible equipment.
• EV Diagnostics: Expand into supported electric vehicle diagnostic applications.
• Printer: Print supported diagnostic reports with a compatible printer.

Compatible accessories may include the LAUNCH VSP-600 Videoscope, TSGUN TPMS tool, X-PROG III, BST360 Battery Tester and S2-2 Sensor Box. Please confirm accessory compatibility and availability before ordering.

Built-In Repair Information & LAUNCH Mall

Access supported repair information and training videos to help technicians understand diagnostic procedures and troubleshoot vehicle faults. The LAUNCH Mall also provides an option to expand the tool with additional compatible software and services as workshop requirements change.

Vehicle Coverage

The LAUNCH X431 PAD VII Elite supports a wide range of vehicles across American, Asian and European markets, with coverage advertised for more than 110 brands. Actual functions depend on the vehicle make, model, year, control module and software version.

Before purchasing for specialised programming, commercial vehicles, ADAS calibration or immobiliser work, please confirm the required function and vehicle compatibility.

LAUNCH X431 PAD VII Elite Specification

• Smartlink
• Operation System: Andorid 9.0
• CPU: 2.0GHz Octa-core
• Display: 13.3' touch screen 1920*1080, 3.5' touch screen  320*480
• Memory: 8 GB
• Storage: 256 GB
• Camera Rear 13MP, Front 8MP
• WiFi: Dual Band 2.4 & 5GHz
• Dual Band 2.4 & 5GHz
• Diagnostic Communication: WiFi & BT & USB
