Launch O2-2 Scope Box Car 4 Channel Oscilloscope

Regular
$1,200.00
Sale
$1,200.00
Regular
$1,399.00
Sold Out
Unit Price
per
Tax included. Shipping calculated at checkout.

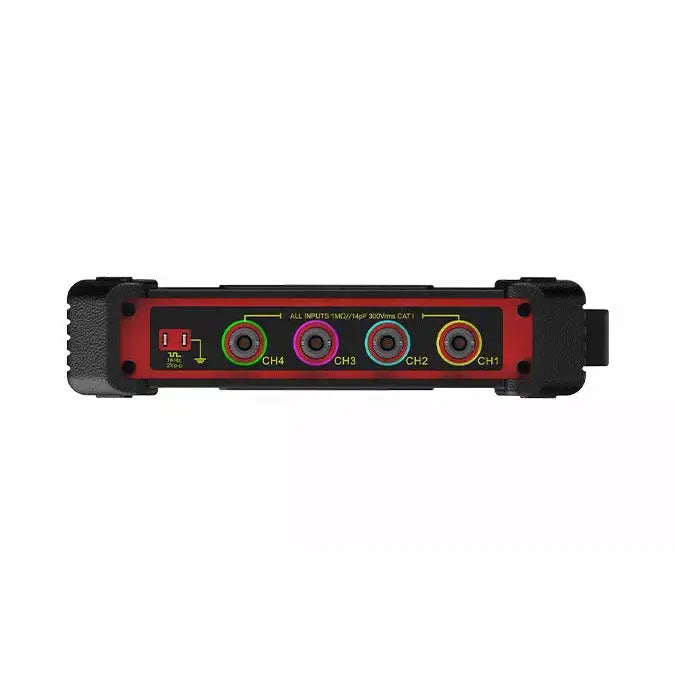

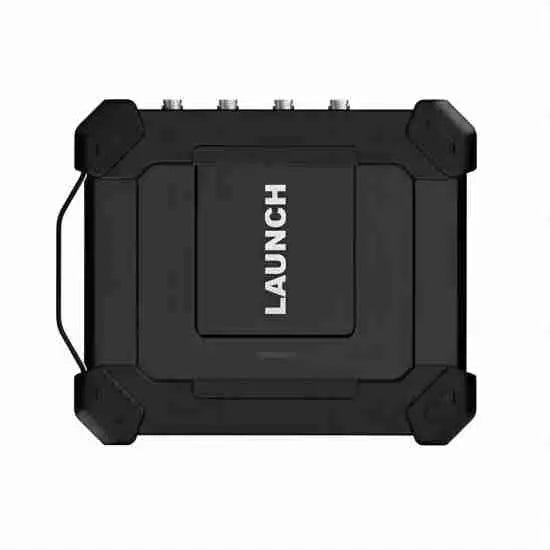

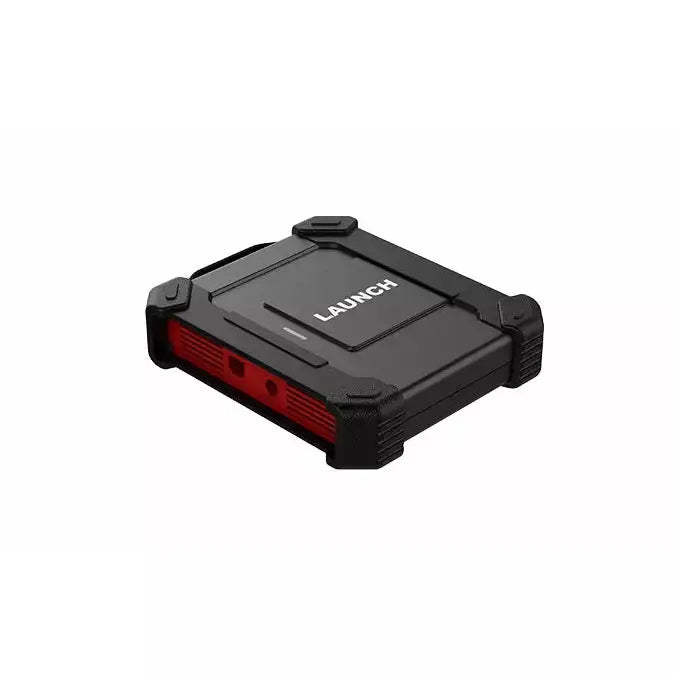

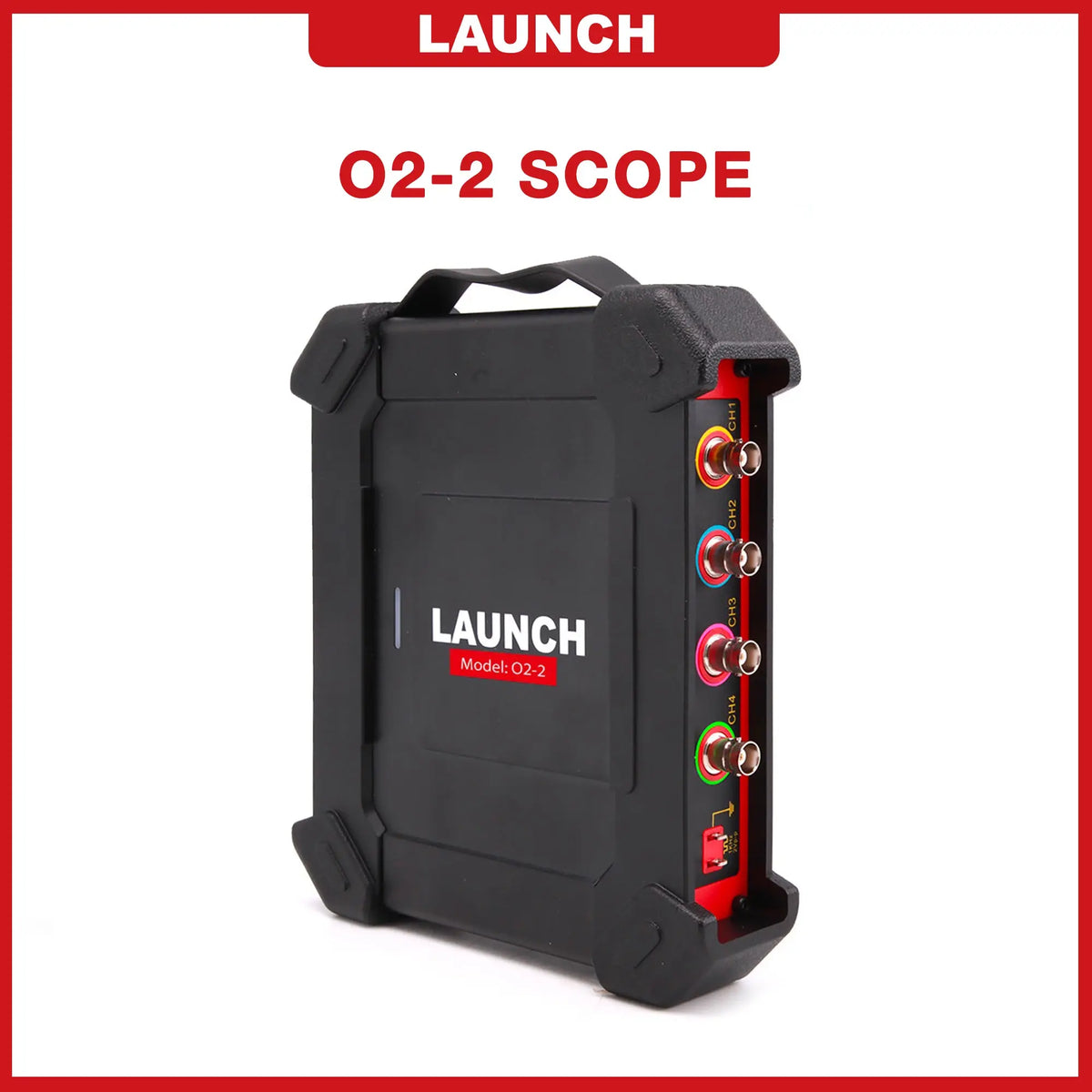

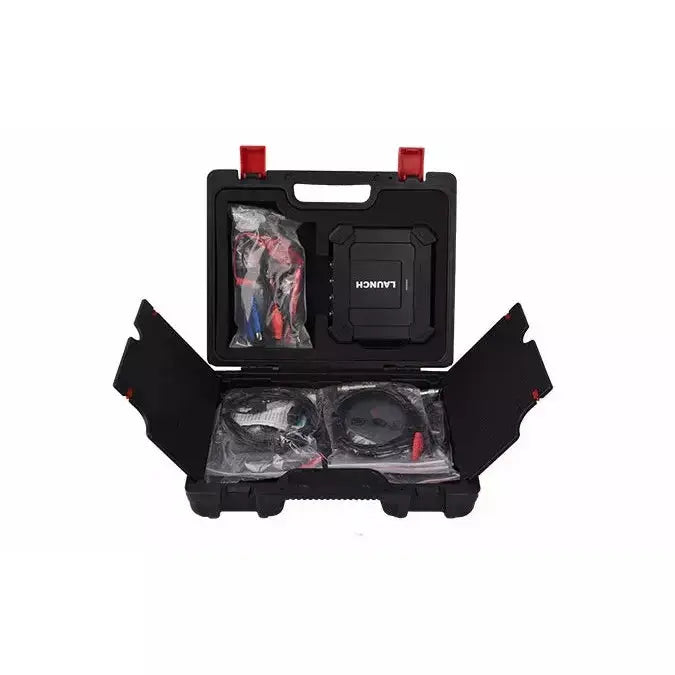

LAUNCH O2-2 SCOPE BOX CAR 4 CHANNEL OSCILLOSCOPE ADD-ON MODULE FOR LAUNCH DIAGNOSTIC SCAN TOOLS

• Features the ability to record and playback high-resolution waveform data for future analysis. One key enable function

• Allows the user to capture a particular waveform which makes the process 70% more efficient as compared to other scopes.

• Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.

• Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process

• contributes to 90% efficiency.

• Buffer memory up to 50M.

• Use the zoom-in/out feature to review precise details.

• Customizable personal system settings that can be saved as configuration files for viewing.

• The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.

• Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.

• Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.

• Multi language user interface.
USB Sync Data Transfer to external devices such as laptop, tablet, etc....



NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.

Specification

Channels 4
Bandwidth 100MHz
Rising Time ≤3.5ns (typical)
Accuracy ±3%
Input Impedance 1MΩ±1.5%
Input Type Single-ended, BNC connector
Input Coupling DC AC
Overload Protection ±200V on single input
Timebase Ranges 50ns~1ks (1 channel), 100ns~1ks (2 channels), 200ns~1ks (4 channels)
Vertical Resolution 8bits
Buffer Memory  50M (for 4 channels)
Power Interface USB port, DC IN port
Data Exchange Via USB
Trigger Mode Normal, Auto and Single SEQ
Advanced Triggers Edge, Pulse width
