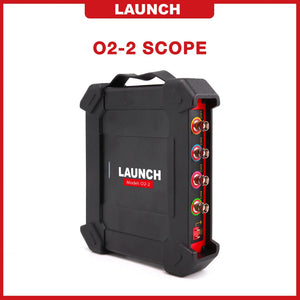

Launch O2-2 Scope Box Car 4 Channel Oscilloscope

$1,200.00 incl. GST
$1,200.00 incl. GST
$1,399.00
Sold Out

LAUNCH O2-2 SCOPE BOX CAR 4 CHANNEL OSCILLOSCOPE ADD-ON MODULE FOR LAUNCH DIAGNOSTIC SCAN TOOLS

• Features the ability to record and playback high-resolution waveform data for future analysis. One key enable function

• Allows the user to capture a particular waveform which makes the process 70% more efficient as compared to other scopes.

• Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.

• Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process

• contributes to 90% efficiency.

• Buffer memory up to 50M.

• Use the zoom-in/out feature to review precise details.

• Customizable personal system settings that can be saved as configuration files for viewing.

• The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.

• Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.

• Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.

• Multi language user interface.
USB Sync Data Transfer to external devices such as laptop, tablet, etc....



Specification

Channels 4
Bandwidth 100MHz
Rising Time ≤3.5ns (typical)
Accuracy ±3%
Input Impedance 1MΩ±1.5%
Input Type Single-ended, BNC connector
Input Coupling DC AC
Overload Protection ±200V on single input
Timebase Ranges 50ns~1ks (1 channel), 100ns~1ks (2 channels), 200ns~1ks (4 channels)
Vertical Resolution 8bits
Buffer Memory  50M (for 4 channels)
Power Interface USB port, DC IN port
Data Exchange Via USB
Trigger Mode Normal, Auto and Single SEQ
Advanced Triggers Edge, Pulse width



NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.

This product is directly imported from China with great working software suitable for the New Zealand market. Please keep the serial number secure from the local agent Launchtech New Zealand and its official distributors.
