Launch CRT511S TPMS Relearn Programming Diagnostic Tool

Sold Out
Unit Price
GST included. Shipping calculated at checkout.

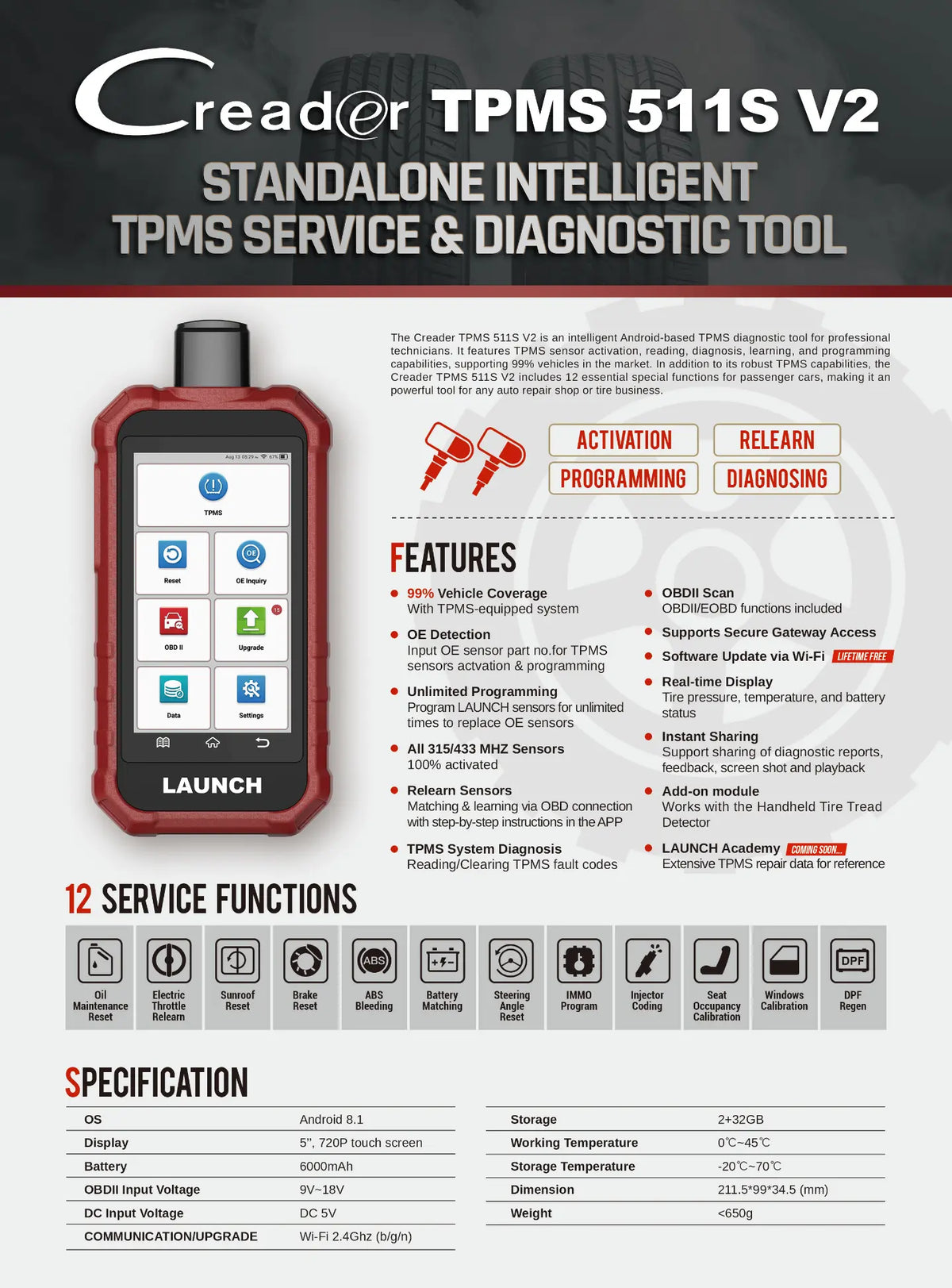

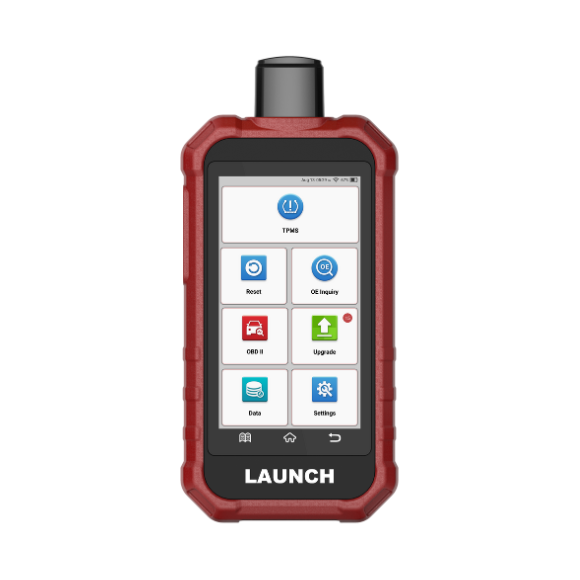

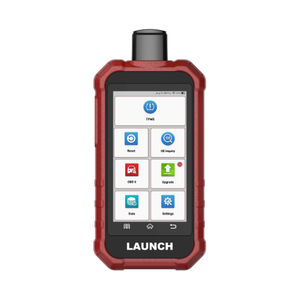

Launch CRT511S TPMS Diagnostic Tool

Launch CRT 511S is a professional TPMS device for reading information from tire pressure sensors, with activation, reading, programming and learning functions, receiving signals at low or high frequencies (315MHz/433MHz). The main device is designed as a protected device with a central screen of Android OS. Car diagnostics according to OBD-II protocols and the special reset function (coding/adaptation) are performed with a 16-pin OBD cable, through which the device is also charged. CRT 511S is intended for both professionals and amateurs, for use in tire fitting and car services, private garages or for home purposes. The package includes, main unit, OBD cable, USB cable and free software updates.

  • 98% vehicle coverage with TPMS-equipped systemAll 315/433 MHZ sensors for 100% activated.
  • Read TPMS data instantly and accurately.
  • Input sensor part# for TPMS sensors activation and programming.
  • Program LAUNCH sensors for unlimited times to replace OE sensors.
  • Matching & learning via OBD connection with step-by-step instructions in the APP.
  • TPMS system diagnosis for reading/Clearing TPMS fault codes.
  • OBDII/EOBD functions included.
  • Supports 12 service functions

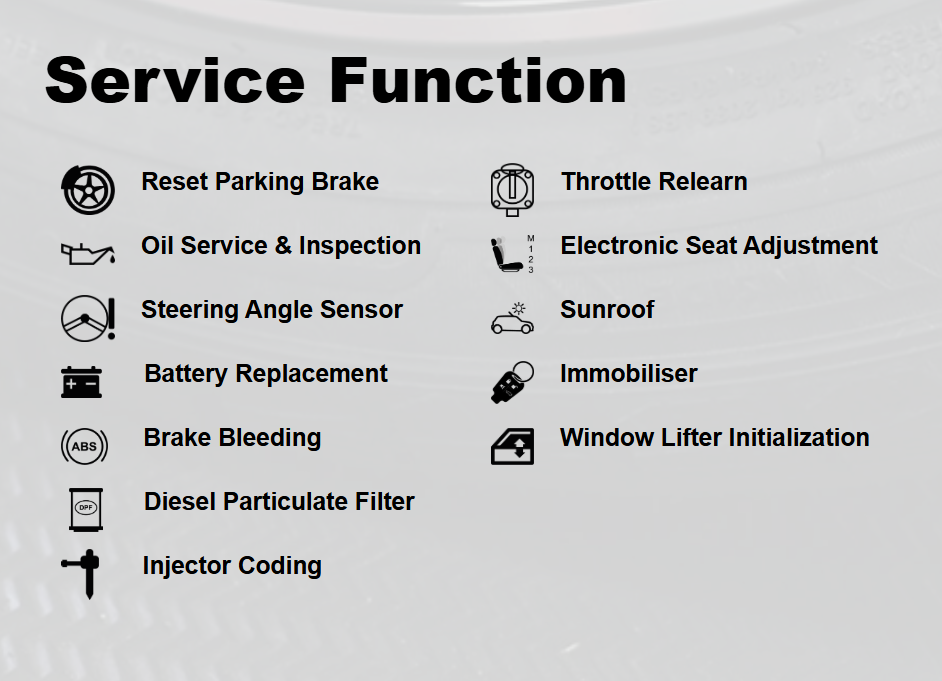

Integrated service functions

  • Reset parking brake
  • Oil Service & inspection
  • Steering angle sensor
  • Battery replacement
  • Brake bleeding
  • Diesel particulate filter
  • Battery replacement
  • Teach throttle valve
  • Electrical seat-adjustment
  • sunroof
  • Immobilizer
  • Window regulator initialization


  •   OS: Android-based
  •   Display: 4’’, 480 * 800
  •   Battery: 4000mAh
  •   OBDII Input Voltage: 9V ~ 18V
  •   DC Input Voltage: DC 5V
  •   Working Temperature: 0℃~50℃
  •   Storage Temperature: -20℃~70℃
  •   Dimension: 159*88*37 (mm)
  •   Weight: 0.7kg
NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.
