LAUNCH CRP123X Plus All-System OBD2 Diagnostic Scanner
- Regular
- $499.00
- Sale
- $499.00
- Regular
- Unit Price
- per

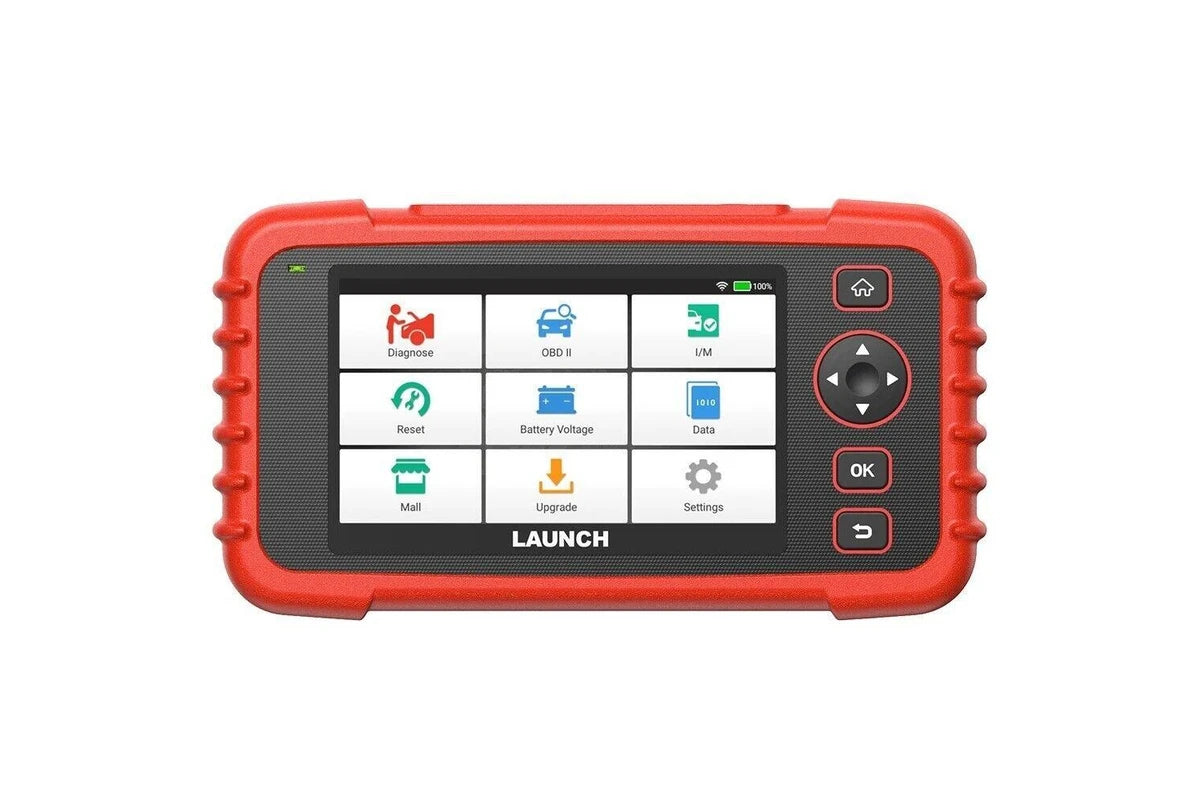

LAUNCH CRP123X Plus All-System OBD2 Diagnostic Scanner
The LAUNCH CRP123X Plus OBD2 diagnostic scanner is a versatile all-system car diagnostic tool designed for DIYers and mechanics. It provides diagnostics for accessible vehicle systems including Engine, ABS, SRS, Transmission, TPMS and BCM, while also offering three free service reset functions, full OBD2 diagnostics, Auto VIN and live data. With support for 57+ vehicle brands and 10,000+ models from 1996–2024, the CRP123X Plus provides broad coverage in a compact handheld design.
Key Features
🔧 All-System Vehicle Diagnostics
Scan accessible vehicle systems such as Engine, ABS, SRS, Transmission, TPMS and BCM. Read and erase diagnostic trouble codes and view live data where supported.
⚙️ 3 Free Service Resets
Includes Oil Reset, Throttle Matching and SAS Calibration with lifetime free access according to the supplied product information.
🛠️ Optional Service Reset Functions
18+ additional reset functions can be added through in-device purchase, including Brake, TPMS, DPF, BMS and ABS Bleeding functions.
📊 Full OBD2 Diagnostics
Supports the full range of OBD2 diagnostic modes, including functions such as I/M Readiness, O2 Sensor and EVAP testing on compatible vehicles.
🔋 Battery Voltage Graphing
Monitor vehicle battery voltage in real time with graphical display for easier observation during diagnostics.
🚗 Auto VIN
Automatically identifies vehicle information on supported models. Some vehicles may require manual vehicle selection.
Service Reset Functions
| Function | Availability |
|---|---|
| Oil Reset | Free |
| Throttle Matching | Free |
| SAS Calibration | Free |
| 18+ Optional Resets | Available as additional in-device purchases |
Optional functions listed in the supplied information include Brake, TPMS, DPF, BMS and ABS Bleeding.
Vehicle Compatibility
The LAUNCH CRP123X Plus supports 57+ vehicle brands and 10,000+ models from 1996–2024 using OBD2, EOBD, JOBD, KOBD and CAN protocols.
| USA | Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Lincoln |
| Europe | Audi, BMW, Benz, Citroen, Fiat, Jaguar, Land Rover, Opel, Peugeot, Porsche, VW |
| Asia | Honda, Hyundai, Isuzu, Kia, Lexus, Mazda, Nissan, Subaru, Toyota |
| Australia | Holden, AU Ford |
| South America | GMSA |
Designed for use with most compatible 1996+ passenger cars, SUVs and light trucks. Vehicle system and function availability can vary by make, model and year.
OBD2 Diagnostic Capabilities
In addition to system-level diagnostics, the CRP123X Plus supports full OBD2 diagnostic modes for compatible vehicles. This includes emissions-related tests and information such as:
- I/M Readiness
- O2 Sensor Test
- EVAP Test
- Live Data
- Diagnostic Trouble Codes
- Other supported OBD2 diagnostic modes
Live Data & Vehicle Health Checks
View available live vehicle data to help identify operating conditions and support troubleshooting. Battery voltage graphing provides a graphical view of voltage changes during the diagnostic process.
Combined with all-system scanning and Auto VIN, the CRP123X Plus is designed to provide a broader view of vehicle condition than a basic engine code reader.

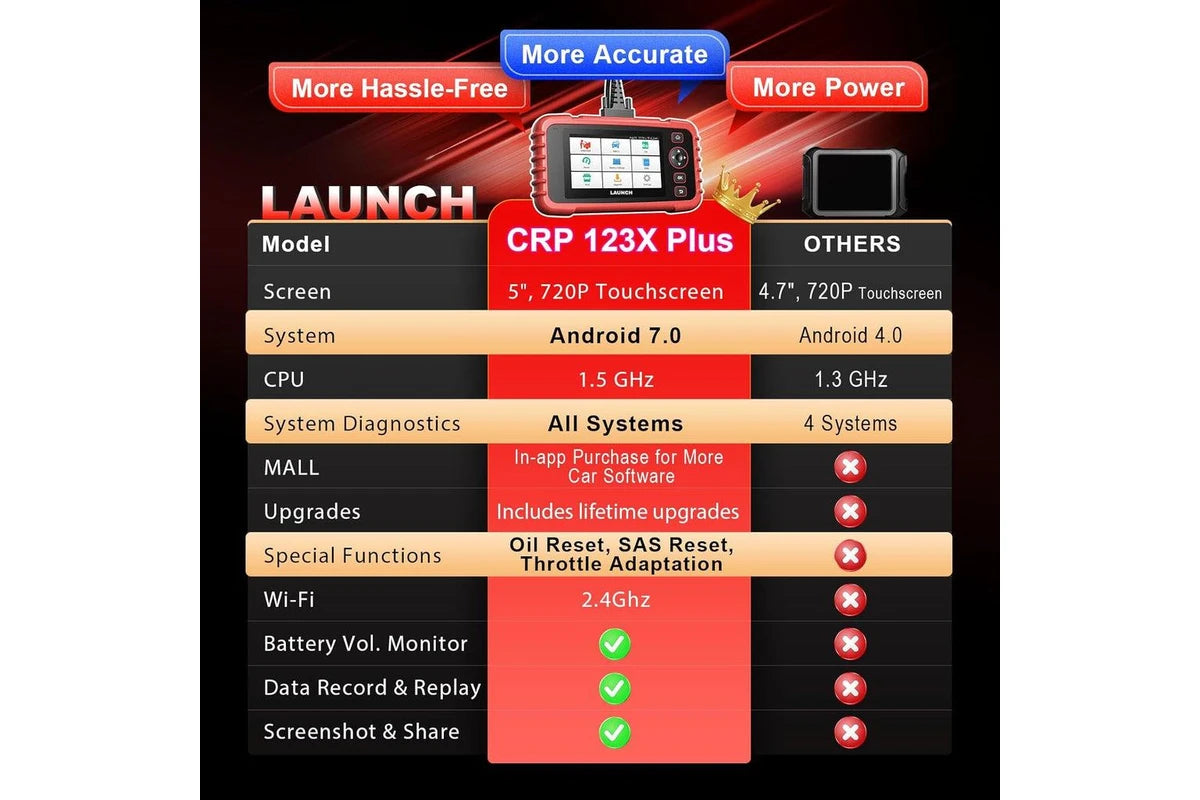

Technical Specifications
| Screen | 5" 720P Touchscreen |
| Operating System | Android 7.0 |
| RAM / Storage | 2GB RAM + 16GB |
| CPU | 1.5GHz |
| Connectivity | Wi-Fi 2.4GHz (b/g/n) |
| Diagnostic Interface | Standard OBD II |
| Weight | Approx. 565g |
| Certifications | CE, FCC, RoHS |
Updates & Warranty
The supplied product information states that the CRP123X Plus includes lifetime free Wi-Fi updates and a 1-year warranty. These features help keep the scanner current while providing ongoing product support.
What's Included
- LAUNCH CRP123X Plus Device
- OBD II Diagnostic Cable
- DC 5V Charging Cable
- Carrying Bag
- Quick Guide
