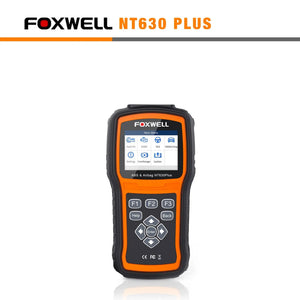

Foxwell OBD2 Code Reader NT630 Plus SRS ABS and Airbag Reset Diagnostic Car Scanner

Regular
$275.00
Sale
$275.00
Regular
Sold Out
Unit Price
per
Tax included. Shipping calculated at checkout.

Foxwell OBD2 Code Reader NT630 Plus SRS ABS and Airbag Reset Diagnostic Car Scanner

foxwell obd2 code reader

Foxwell NT630Plus Description:

Foxwell NT630Plus ABS & Airbag Reset Tool with SAS calibration not only have extensive coverage of vehicles but also provides an accurate and professional diagnosis of ABS and Airbag faults. This new NT630 Plus scanner is just the perfect tool that professional mechanics can't wait to have.

NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.


NT630 Plus Features and Benefits:

1. ABS and Airbag coverage includes 58 manufacturers
2. SAS (Steering Angle Sensor) Calibration on more than 41 vehicles makes
3. Works on the latest 2020/2021 models including cars, SUVs, minivans, and light-duty trucks sold worldwide
4. Identifies cars quickly and easily with one-key VIN reading
5. Reads and clears codes and turns off  warning indicators
6. NT630 Plus allows you to temporarily activate or control the ABS/airbag system or component.
7. It shows live vehicle sensors data in text and graph formats
8. You can view 2 parameter graphs simultaneously and merge them into one coordinate
9. Multilingual menu options and code definitions
10. Lifetime free updates
11. Extremely easy to use with clearly arranged keypad, menu-driven operation, and shortcuts

Foxwell NT630 Plus Functions:

Full OBDII Engine Check Light Code Reader:
Fast read and clear check engine light codes on all 12 OBDII-compliant cars, such as live data, O2 sensor test, component test, and more.
Access to emissions readiness status, on-screen DTC definitions, and built-in DTC lookup library allow you to accurately determine the causes of the check engine light and turn off the MIL.


Special Functions:
● ABS Manual Control Tests – allows us to manually control the actuators in order to test ABS motors, solenoids, solenoid enables relays, EMBs, and more.
● ABS Motor Test – allows us to manually control the ABS pump motor.
● ABS Version Test – displays the name of the brake system and the ABS controller version
number, software ID, and sequence value.
● Actuator Tests – allows us to manually control the actuators in order to test AYC valves, inlet valves, outlet valves, pump motors, and TRACS valves.
● Auto Bleed Test, Automated Bleed, or Service Bleed – removes air from the internal brake
fluid chambers after servicing the brakes.

SRS(Airbag Crash Data) Reset Tool:
Compared to other SRS scanners, Foxwell NT630 Elite can reset the airbag control module after airbag replacement.

Steering Angle Sensor (SAS) Calibration:
SAS Calibration menu lets you perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM. On the successful calibration of the sensor, its fault memory is automatically cleared.

Foxwell NT630Plus Specifications:

Display: 2.8" TFT color display
Working Temperature: 0 to 60℃ (32 to 140℉)
Storage Temperature: -20 to 70℃ (-4 to 158℉)
External Power: 8-18 Volts powered by vehicle battery
Dimensions: 145*94*32mm (L*W*H)
Color Box: 220*165*85mm (L*W*H)
Weight: 0.6KG
QTY/CTN: 30SETS
Weight/CTN: 28KG
CTN MEAS: 456*442*515mm  (L*W*H)

Foxwell NT630Plus Vehicle Coverage:

ABS:

Acura, Abarth, Alfa, Aston Martin, Audi, Bentley, Benz, BMW, Bugatti, Chrysler, Citroen, Daewoo, Dacia, Ford, Ford_EU, Ferrari, Fiat, GM, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Kia, Lexus, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mini, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Scion, Ssangyong, Subaru, Suzuki, Toyota, Vauxhall, Volvo, VW, VW_CV



Airbag:

Acura, Abarth, Alfa, Aston Martin, Audi, Bentley, Benz, BMW, Bugatti, Citroen, Chrysler, Dacia, Daewoo, Ford,  Ford_EU, Ferrari, Fiat, GM, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Kia, Lexus, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mini, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Perodua, Proton, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Scion, Ssangyong, Subaru, Suzuki, Toyota, Vauxhall, Volvo, VW, VW_CV



SAS:

Acura, Audi, BMW, Benz, Citroen, Chrysler, Dacia, Daihatsu, Daewoo, Ford, Ferrari, Fiat, GM, Honda, Hyundai, Infiniti, Jaguar, Kia, Lexus, Lancia, Land Rover, Maserati, Maybach, Mini, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Scion, Seat, Skoda, Subaru, Toyota, Vauxhall, Volvo, VW
