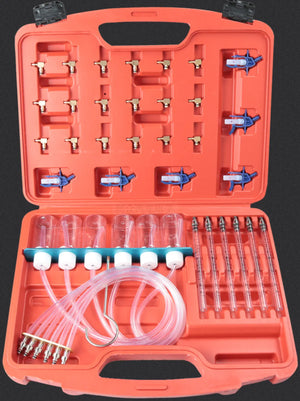

Diesel Injector Flow Diagnostic Cylinder Common Rail Adaptor Test Tool Kit

Features:

Suitable for a range of vehicle injectors,see list below.

Adaptors for Bosch / Siemens / Denso / Delphi injectors.

This kit is design to measure the amount of the fuel that every injector returns to the deposit tank rapidly and effectively.

The purpose of the flow meter instrument is to measure rapidly and effectively the amount of fuel that every injector returns to the deposit tank, so that you will know if any injector is damaged.

Possibility of simultaneous measurement of up to 6 injectors.

Blow moulded case for transportation and storage is included.

Specification:

24pcs injector adaptors for BOSCH-01, SIEMENS-02, DENSO-03 and DELPHI injectors.

6 x Adapter: for Bosch injectors.

6 x Adapter: for Siemens injectors.

6 x Adapter: for Delphi injectors.

6 x Adapter: for Denso injectors.

6 graduated reservoir bottles for use when running engine(capacity of 105 ml).

6 fuel-resistant transparent hoses 650mm long.

6 graduated manometer tubes for use when cranking engine(capacity of 95 ml). Anodized hanging bottle rack for engine bay.
