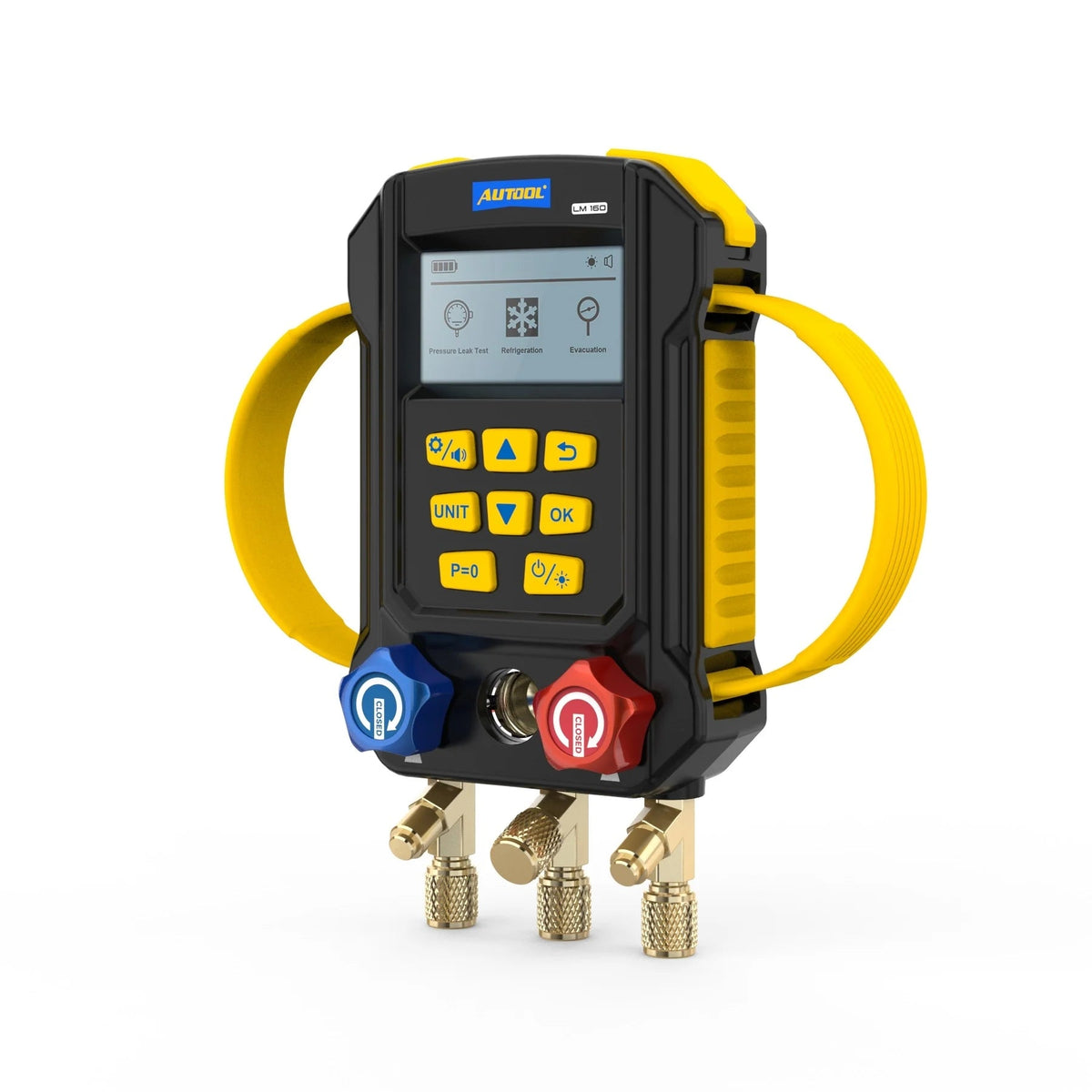

AUTOOL LM160 Air Conditioning Refrigerant Leak Detector Digital Manifold Gauges

$419.00
$419.00
Sold Out

AUTOOL LM160 Air Conditioning Refrigerant Leak Detector Digital Manifold Gauges

AUTOOL LM160 is the latest smart digital manifold kit with a built-in standard database of 95 refrigerants and multiple unit switching. The intelligent control system makes its operation process from complicated to simple, allowing you to operate the equipment more easily.

  • Pressure measured with a digital manifold pressure tester is gauge pressure.
  • The pressure test range is -101Kpa to 6 Mpa (-0.1 bar to 60 bar).
  • The ultimate pressure is 10 MPa (100 bar).
  • The maximum working pressure of a standard hose is 600 PSI (approximately 4.13Mpa, 41.3 bar). The ultimate pressure is 3000 PSI (about 20.68Mpa, 206.8bar).
  • Please check the rated pressure value of the device under test before testing. Do not use if it is beyond the measuring range of the device. If the packaged hose does not meet your pressure requirements, suitable alternatives can be tested.
  • Do not use or store the device in areas with high temperature, high humidity, flammable, explosive, or strong electromagnetic fields.
  • To avoid equipment damage or hazard, do not modify the equipment’s internal circuitry.
  • Wear approved protective equipment to protect the user during testing.
  • Please use it in a well-ventilated environment to prevent inhalation of toxic gases.

AUTOOL LM160 Refrigerant Leak Detector Features
  • Pressure Leak Test: It is used to check the tightness of the refrigeration system.
  • Vacuuming Mode: For measuring the pressure of the refrigeration system while drawing a vacuum and determining the current vacuum status of the refrigeration system.

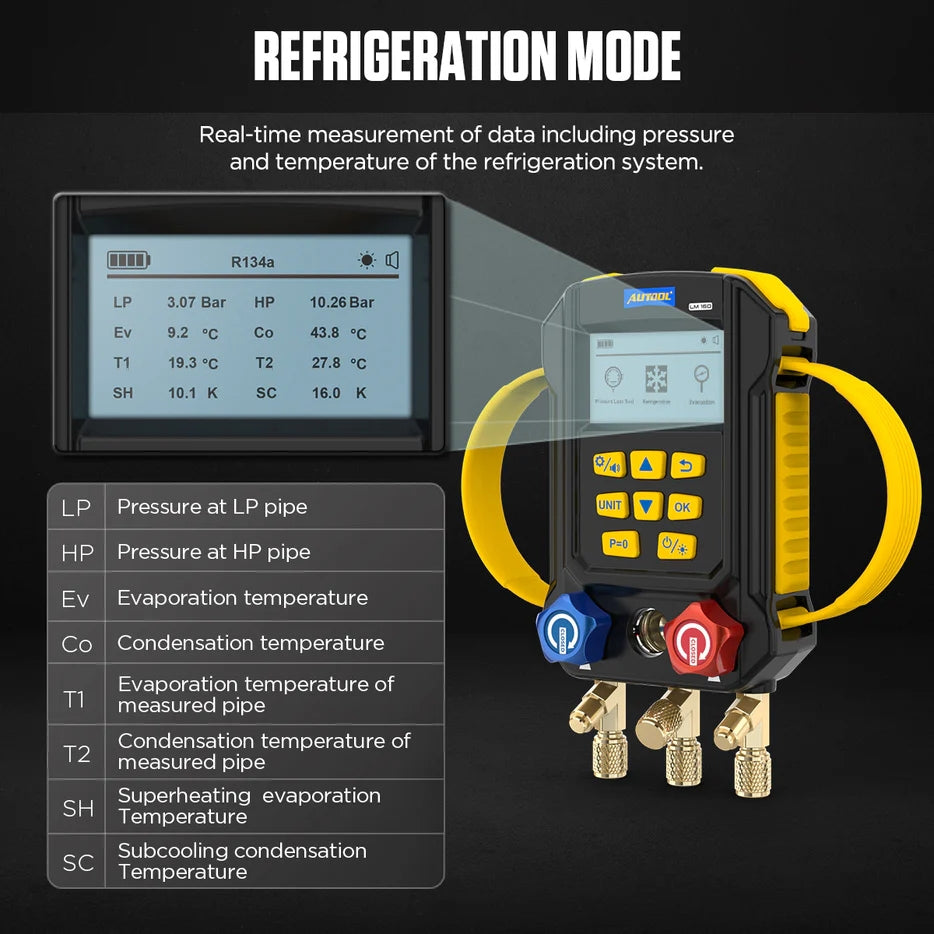

  • Refrigeration Mode: Real-time measurement of data including pressure and temperature of the refrigeration system.
  • Build-in 95 Standard Databases: Satisfy your different needs. Like R134a, R22, H2O, R401C, 1234zeE, etc.
  • Program Control System: The menu employs intelligent program control, and yje intuitive and detailed result display streamlines traditional operation, making it easier for technicians to run the device.
  • Original Detail Design: High/low-pressure valve, foldable hook, refrigerant visible window, and two-sided handrail are more convenient for users to operate the equipment.
  • 2.8-inch Display: Backlit screen design allows for use even in dark environments.
  • Multilingual Support: Support multilingual settings: English, French, German, Italian, Spanish. Portuguese, Chinese, Japanese.
  • Various Units Available: Equipped with pressure multunit automatic conversion such as temperature Celsius/Fahrenheit conversion.
