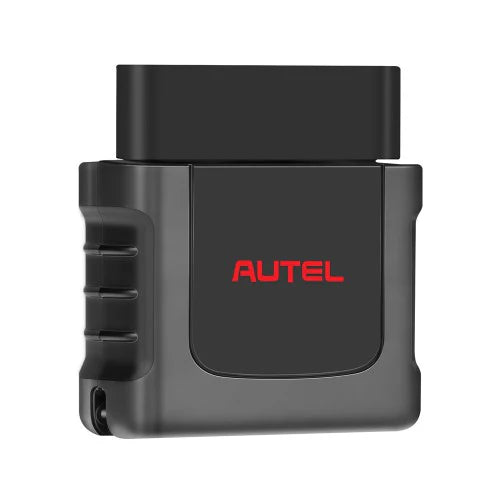

Autel MaxiVCI Mini VCI Mini Bluetooth Diagnostic Interface

Notice:

1. The Tablet in This Advertising is Not Included, for Reference Only!
2. Enables Autel Tablet to Connect to The Vehicles
3. Lightweight Vehicle Connection Interface (VCI)
4. Connects to The Vehicles by OBDII Port
5. Allows Technician to Perform Testing Outside Vehicles
6. Autel MaxiVCI Needs to Be Used With Autel Tablet Device Like MK808BT, MK808TS, MX808TX, MP808TS, etc.

Description:

Autel VCI Mini is designed to connect wirelessly with the MaxiCom / Maxicheck / MaxiPro and MaxiTPMS Display Tablet, as a vehicle communication interface (VCI) for vehicle data transmission. Thanks to the wireless Bluetooth technology, with which you are allowed to work freely around the vehicle. This interface device can communicate with vehicles' electronic control units (ECUs), guaranteeing performance and speed that redefine multi-brand diagnostics.





Power Sources

The MaxiVCI Mini operates on 12-volt vehicle power, which is received through the vehicle's DLC. The unit powers on whenever it is connected to the vehicle's DLC.

Autel MaxiVCI – Vehicle Communication Interface

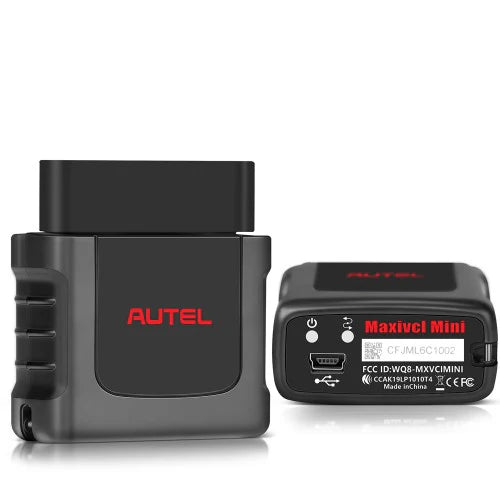

The wireless diagnostic interface MaxiVCI Mini is a small vehicle communication interface (VCI) used to connect to a vehicle's data link connector (DLC) and connect wirelessly with the tablet for vehicle data transmission.

1. Vehicle Data Connector (16-Pin) – connects the MaxiVCI Mini to the vehicle's 16-pin DLC directly.
2. Power LED – refer to Table 2- 2 Power LED on the Front Panel
3. Connection LED – refer to Table 2- 3 Connection LED on the Front Panel
4. USB Port – provides the easiest connection between the device and the tablet via a USB cable.

Table 2- 2 Power LED on the Front Panel


Table 2- 3 Connection LED on the Front Panel


Product Display:

Specification:


Package List:

1pc x Autel VCI Mini
