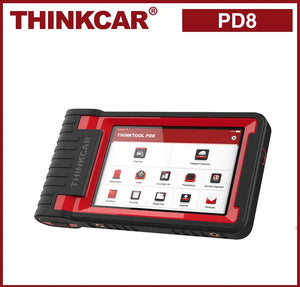

Thinkcar Thinktool PD8 OBD2 Bi-Directional TPMS Diagnostics Scanner

Regular
$1,399.00
Sale
$1,399.00
Regular
Sold Out
Unit Price
per
Tax included. Shipping calculated at checkout.

Thinkcar Thinktool PD8

Thinkcar Thinktool PD8 OBD2 Scanner Bi-Directional Scanner Full Systems Diagnostic Scan Tool 28 Lifetime Free Reset Functions. Screen size of THINKTOOL PD8 is 8inch, this size is more popular size, and more importantly, you don’t have to worry about power consumption too fast, you DONT have to worry about charging it while working, 6000mA/h battery for long time use. Thinkcar Thinktool PD8 features Bi-directional Control, Actuation Test and Guiding Functions, supported more advanced functions included Oil Reset, Elec. Throttle Adaption, IMMO Service, Injector Coding, Break-pad Reset, Steering Angle Reset, ABS Bleeding, AFS Reset, Battery Matching, A/T Learning, DPF Regeneration, EGR Adaption, TPMS Reset, Sunroof Initialization, Suspension Matching, Gear Learning, Airbag Reset, ODO Meter Reset, AdBlue Reset, A/F Reset, Coolant Bleeding, Language Change, NOx Sensor Reset, Seat Calibration, Stop/Start Reset, Transport Mode, Tyre Reset, Windows Calibration.

NOTE: Not applicable to all models. Please check whether it is suitable for your vehicle model before purchasing.

Actuator Test
 Injector Test ;Turn Off ACC Lane Keeping Assist System (LKAS) ;Turn ON/OFF Front and Rear side ACM Solenoid , turning the fuel pump on and off, cycling the a/c ,clutch on and off, Left clutch electromagnetic coil test, Acceleration Device Test, Oil Pressure Control Test, DYNAMIC camera aiming, Vehicle level position calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Botors, Wheel Speed Sensor Supply, Parking brake tests

Advanced ECU Coding
OBD2 scanner PD8 help measure transmission fluid temperature and other such as transmission diagnosis, ABS bleeding, and this scan tool allows the coding of the ECU itself, making it a more useful option for professional garages. You can reprogram the vehicle with the latest OEM calibration files to diagnose and repair car problems. ECU Coding involves changing a vehicle's settings (parameters) through deep access to the engine control unit.

Bi-directional Control - Actuation Test
Code reader PD8 same with x431, featuring an actuation test is where you use the tool to tell the PCM to command an actuator to perform a function. Some tests this tablet scan tool can perform are turning the fuel pump on and off, cycling the A/C clutch on and off, and even helping with an emissions leak test. With a bidirectional control function, you can perform tests and solve problems happening within your vehicle's diagnosis system

28 Maintenance & Adaption Services
28 special service functions such as ABS Bleeding, DPF regeneration, Battery Matching, TPMS Reset, Steering Angle Calibration, AFS Reset, Gear Reset are some key features of this professional automotive diagnostic tool. It can also relearn and match modules. Whether you're replacing the TPMS, transmission, battery, or what have you, you can relearn the new component with the ECU

All System Topology Diagnosis
 With professional-level topology diagram diagnostics, you can see the conditions of all systems at a glance in a diagram. The car code reader can tell you what is wrong with the Engine, Body, Powertrain, Chassis. Professional PD8 is equipped with the 4 quad-core processor 1.8HGz that offers a fast operation speed and diagnosis. 8-inch color touch screen allow you to multitask and perform different functions at the same time

Online Coding
The vehicle coding brings many functions to the vehicle. If the coding is not correct, some functions of the vehicle can not be used. The corresponding configuration of each chassis number of vehicle will be recorded in the manufacturer's serial number. Through online coding, the correct vehicle code can be provided, so as to ensure the normal use of the function of the vehicle to be coded

Power Balance
 When the imbalance is serious, the tire may also have eccentric wear due to abnormal lateral swing, and the tire life will also be affected. Power balance function helps extend the service life of automobile components

Online Calibration
 Automobile manufacturers adjust the camber, toes and casters according to specific vehicles to make safe and derivable vehicles.

Guided Functions
Guidance function: the function of guiding the use of the product to prevent the car setting caused by wrong operation

Component Matching
All auto manufacturers have set the optimal data for your car to give full play to the optimal performance of the car. Component matching helps vehicle data recovery to achieve the best performance of the vehicle

Anti-Theft Immo service
 Legally protect your car control rights. Help car repair factory to use car unique PIN code to realize key matching

Programmable Module Installation
Help with car modification and so on. When you replace car components, help you to match the ID of the components to the car computer

Flash Hidden Functions
 Many cars have the same configuration but different functions, only because some of the functions are hidden by the car manufacturers. The Refresh Hide feature allows the car to achieve high-end configuration

ECU Coding
 The Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements. providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts

TPMS function
 With wireless TPMS tool (optional), TPMS activation, programming and learning functions can be supported.(Need Extra TPMS Module)

Oil Light Reset
Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

TPMS Reset
Makes TPMS sensor in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.

Key Programming
Read pin code from vehicle security immo system, mainly used to disable the lost vehicle keys and program a new replacement key fob.

Electronic Parking Brake Reset
To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement .

Steering Angle Calibration
To perform calibration for the Steering Angle Sensor, and clear fault memory

Battery Register / Battery Maintenance
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle battery system

ABS Bleeding
The auto bleed procedure is used on brake pump equipped vehicles

Electronic Throttle Position Reset / Learn
Initialize the throttle actuators so that the "learned" values stored on ECU are returned to the default state;

Diesel Particulate Filter (DPF) Regeneration
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

Gear Learning
Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced;

Injector Coding
Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;

Quickly Customize Your Car
Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. PD8 OBD2 scanner is equipped with advanced ECU coding function for addressing the following issues
1.After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.
2.By changing the code with the ECU coding, it’s easy to improve vehicle performance or stimulate high-end functions for the car.
3.ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.



Full Systems Diagnoses
Read / erase codes, view live data, retrieve ECU version information, do active test and service functions for all systems including ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, Fuel System, Light System and A/C system etc, One-click Auto VIN is available with Wi-Fi enabled. PD8 scan tool can scan 150 car brands, more than 10,000 car models.



Full OBD2 Diagnose Features
PD8 auto scanner will let you know your car engine status that read codes, erase codes, on-board monitor test, I/M readiness, vehicle live data reading, freeze frame data, vehicle information, O2 sensor test, EVAP Monitor test, component test, turn off MIL. PD8 OBDII scanner can help you detect any potential problems, and to avoid excessive costs for unnecessary repairs



One-Click Generate Health Report
Health Report will scan all vehicle modules and give you a status list for each modules condition. Also known as “Global Test” or “Full Scan”. This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished. The reports are saved to the internal memory for later review. The reports are able to be saved in PDF format, and as the tablet is equipped with WIFI, these can be emailed to the office or directly to the customer.

10000+ Vehicles Supported
The OBD-II scan tool can work with most OBD2 compliant vehicles, including those 1996 and newer vehicles in Asia, Europe, and America, with more than 57 car brands. online update brings newer software and vehicle models, saving your money without extra charges.



Multi Languages to use
Full localized Languages free to use to choose your native language without encountering any sort of language barrier. It supports Remote Diagnostic, diagnostic feedback and respond, Data Stream record and playback, Vehicle Health Report. It is the perfect Gift for your family and friends, who is a Car dealer, Automotive engineer, Diagnostic technician, home mechanic, DIY beginner, automotive student etc.



WiFi Free Update
Diagnostic scan tool PD8 is adaptable to more than 122 different US, Asian and European-made vehicles from 1996 to 2021. Please Note: Not all features work for all vehicles. If your not sure your device is covered, check with the thinkcar team before purchase
